TC-SHE-100031-CTI-gal-colour-LensMC-obs
Table of Contents
General Information
Test Case ID: TC-SHE-100031-CTI-gal-colour-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by COLOUR. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

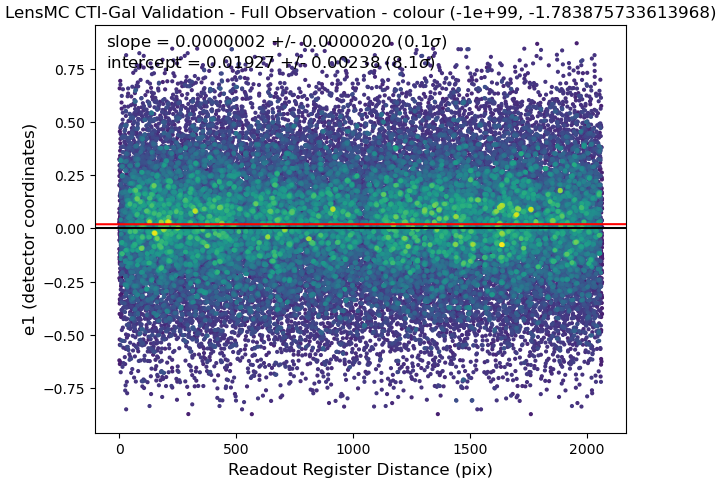

Bin 0
Bin limits: -1e+99 to -1.783875733613968.
Slope Test Result
Slope = 2.0275915346701368e-07 +/- 1.0487090094102314e-06
Z(Slope) = 0.1933416724205017 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.019267525523900986 +/- 0.0024664218071848154
Z(Intercept) = 7.811934471130371 (Max allowed: 5.80)
Intercept result: FAILED

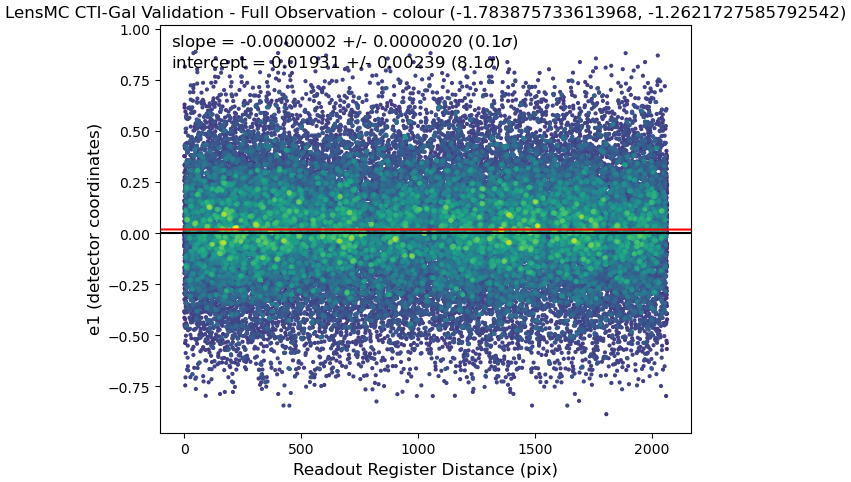

Bin 1
Bin limits: -1.783875733613968 to -1.2621727585792542.
Slope Test Result
Slope = -2.1099528169088444e-07 +/- 1.0703454336180585e-06
Z(Slope) = 0.19712820649147034 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.019307825714349747 +/- 0.0025060262996703386
Z(Intercept) = 7.704558372497559 (Max allowed: 5.80)
Intercept result: FAILED

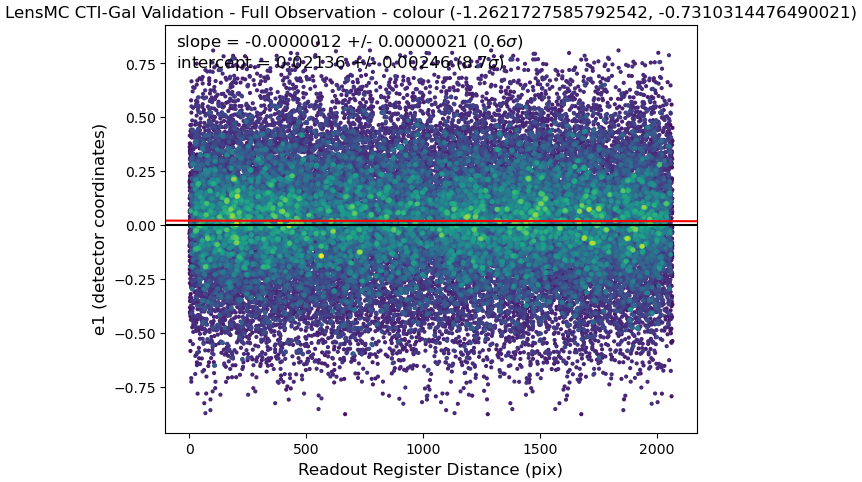

Bin 2
Bin limits: -1.2621727585792542 to -0.7310314476490021.
Slope Test Result
Slope = -1.1592585451580817e-06 +/- 1.123987317441788e-06
Z(Slope) = 1.0313804149627686 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02136467769742012 +/- 0.002595231169834733
Z(Intercept) = 8.232282638549805 (Max allowed: 5.80)
Intercept result: FAILED

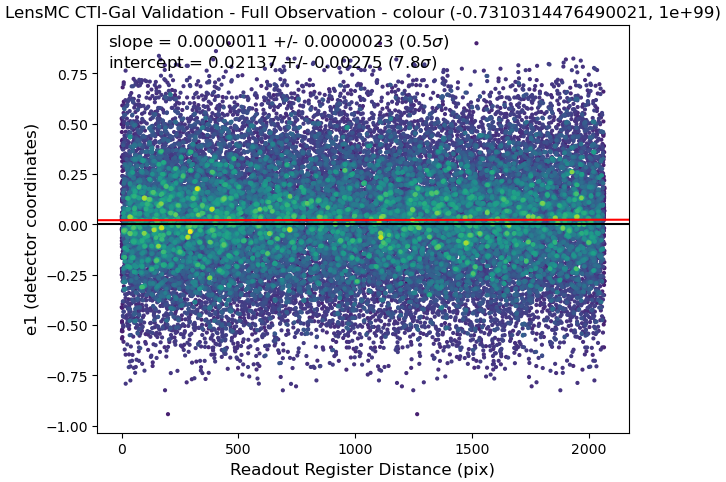

Bin 3
Bin limits: -0.7310314476490021 to 1e+99.
Slope Test Result
Slope = 1.0761432349681854e-06 +/- 1.3367631481742137e-06
Z(Slope) = 0.8050366044044495 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.021370703354477882 +/- 0.0028382076416164637
Z(Intercept) = 7.5296478271484375 (Max allowed: 5.80)
Intercept result: FAILED
