TC-SHE-100029-CTI-gal-bg-LensMC-exp-108854
Table of Contents
General Information
Test Case ID: TC-SHE-100029-CTI-gal-bg-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by background level. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

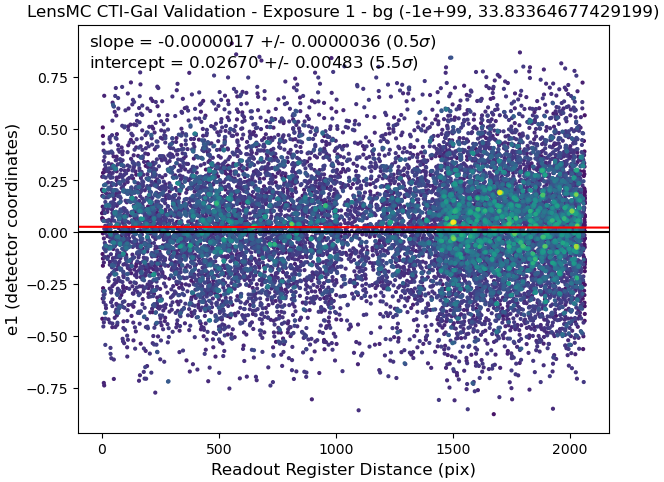

Bin 0
Bin limits: -1e+99 to 33.83364677429199.
Slope Test Result
Slope = -1.6865773204699508e-06 +/- 3.570587750800769e-06
Z(Slope) = 0.47235286235809326 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02670336328446865 +/- 0.004832173231989145
Z(Intercept) = 5.52616024017334 (Max allowed: 5.80)
Intercept result: PASSED

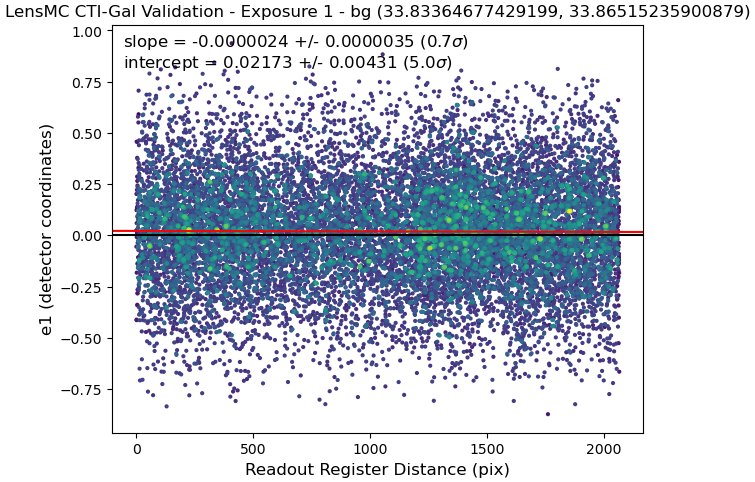

Bin 1
Bin limits: 33.83364677429199 to 33.86515235900879.
Slope Test Result
Slope = -2.426405899313977e-06 +/- 3.497558054732508e-06
Z(Slope) = 0.6937428712844849 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.021732592955231667 +/- 0.004311612341552973
Z(Intercept) = 5.0404791831970215 (Max allowed: 5.80)
Intercept result: PASSED

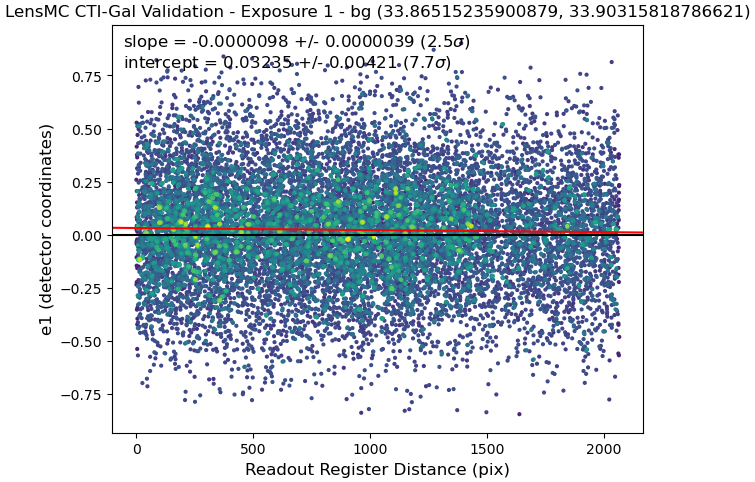

Bin 2
Bin limits: 33.86515235900879 to 33.90315818786621.
Slope Test Result
Slope = -9.774624231795315e-06 +/- 3.9244328036147635e-06
Z(Slope) = 2.4907100200653076 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.03235355019569397 +/- 0.004210711922496557
Z(Intercept) = 7.683629512786865 (Max allowed: 5.80)
Intercept result: FAILED

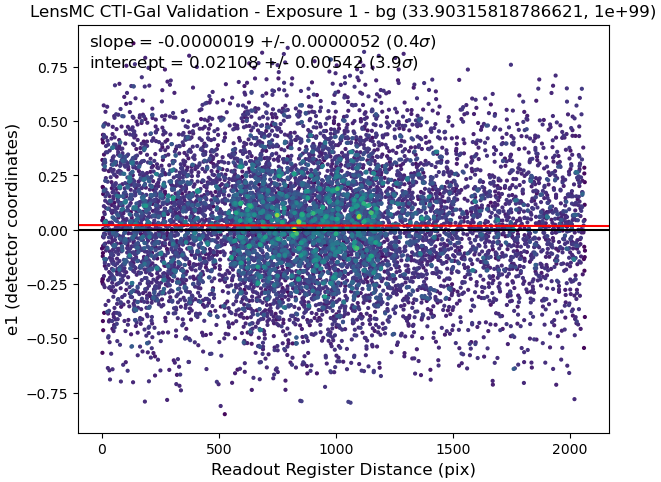

Bin 3
Bin limits: 33.90315818786621 to 1e+99.
Slope Test Result
Slope = -1.9159872408636147e-06 +/- 5.247568878985476e-06
Z(Slope) = 0.3651190400123596 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.021077899262309074 +/- 0.005422820337116718
Z(Intercept) = 3.8868887424468994 (Max allowed: 5.80)
Intercept result: PASSED
