TC-SHE-100031-CTI-gal-colour-LensMC-exp-108856
Table of Contents
General Information
Test Case ID: TC-SHE-100031-CTI-gal-colour-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by COLOUR. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

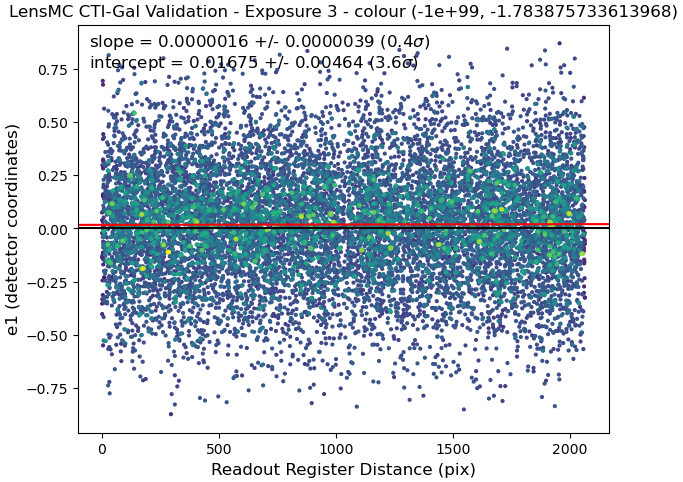

Bin 0
Bin limits: -1e+99 to -1.783875733613968.
Slope Test Result
Slope = 1.5803582300577546e-06 +/- 3.899713647115277e-06
Z(Slope) = 0.40524980425834656 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.016754886135458946 +/- 0.004637967329472303
Z(Intercept) = 3.612549304962158 (Max allowed: 5.80)
Intercept result: PASSED

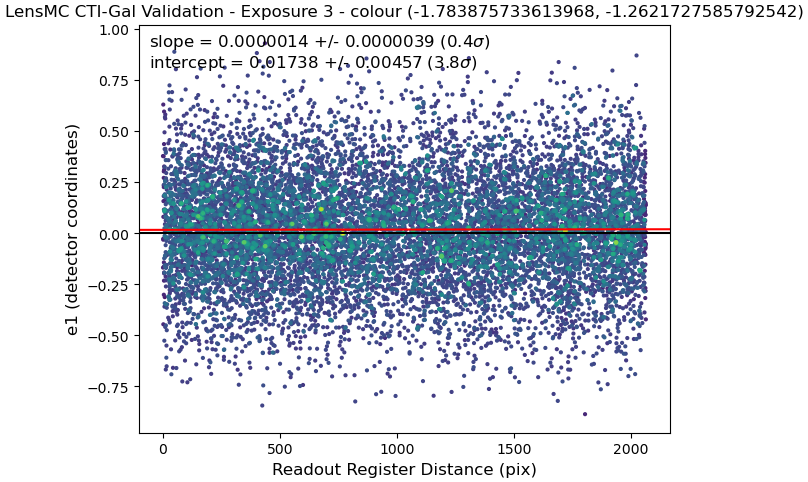

Bin 1
Bin limits: -1.783875733613968 to -1.2621727585792542.
Slope Test Result
Slope = 1.375586634821957e-06 +/- 3.887633283738978e-06
Z(Slope) = 0.3538365066051483 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.0173816941678524 +/- 0.0045666079968214035
Z(Intercept) = 3.8062593936920166 (Max allowed: 5.80)
Intercept result: PASSED

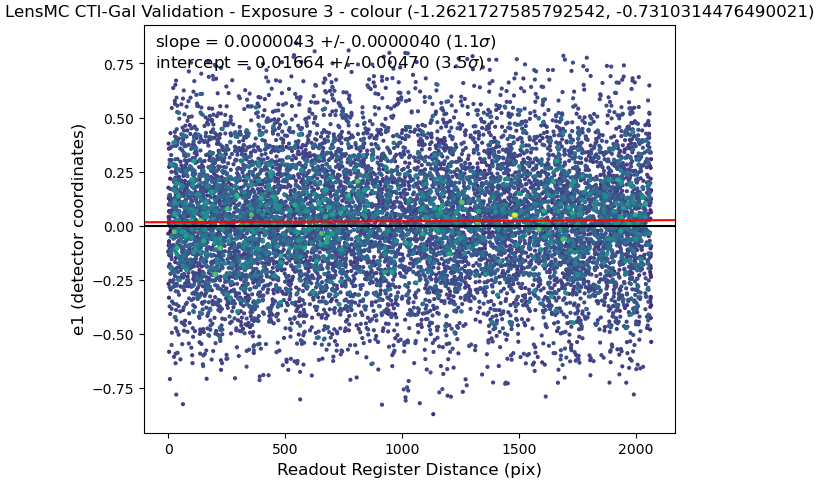

Bin 2
Bin limits: -1.2621727585792542 to -0.7310314476490021.
Slope Test Result
Slope = 4.342130523582455e-06 +/- 3.994944563601166e-06
Z(Slope) = 1.0869063138961792 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.01663667894899845 +/- 0.004700123332440853
Z(Intercept) = 3.539626121520996 (Max allowed: 5.80)
Intercept result: PASSED

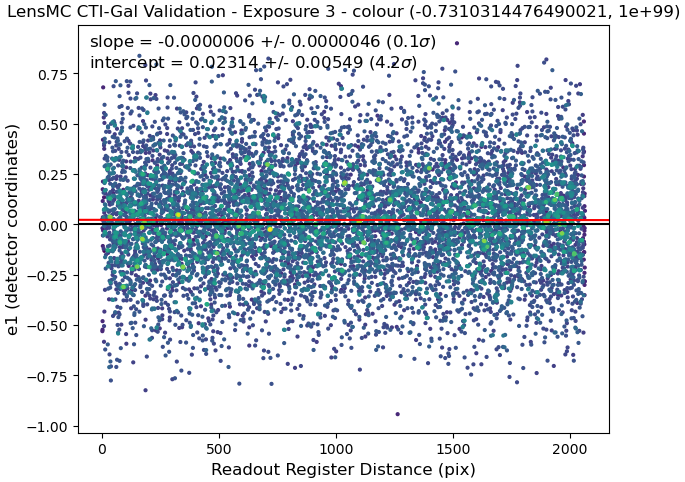

Bin 3
Bin limits: -0.7310314476490021 to 1e+99.
Slope Test Result
Slope = -5.622359822154976e-07 +/- 4.6343839130713604e-06
Z(Slope) = 0.12131838500499725 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.023137874901294708 +/- 0.005491511896252632
Z(Intercept) = 4.213388919830322 (Max allowed: 5.80)
Intercept result: PASSED
