TC-SHE-100028-CTI-gal-SNR-LensMC-exp-108854
Table of Contents
General Information
Test Case ID: TC-SHE-100028-CTI-gal-SNR-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by SNR. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

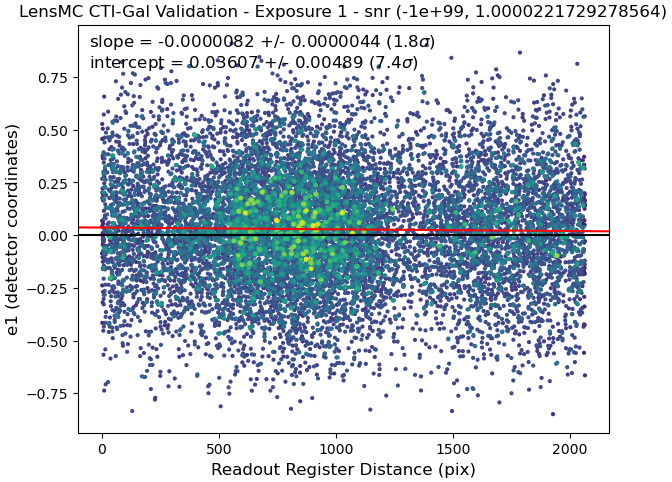

Bin 0
Bin limits: -1e+99 to 1.0000221729278564.
Slope Test Result
Slope = -8.172164598363452e-06 +/- 4.421628545969725e-06
Z(Slope) = 1.8482249975204468 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.036067135632038116 +/- 0.0048902942799031734
Z(Intercept) = 7.375248432159424 (Max allowed: 5.80)
Intercept result: FAILED

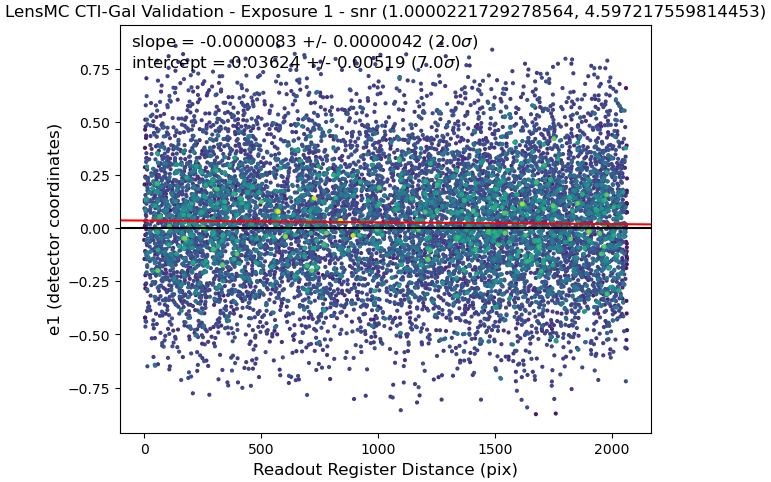

Bin 1
Bin limits: 1.0000221729278564 to 4.597217559814453.
Slope Test Result
Slope = -8.335380698554218e-06 +/- 4.236141649016645e-06
Z(Slope) = 1.9676822423934937 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.036239929497241974 +/- 0.005192871671169996
Z(Intercept) = 6.978784084320068 (Max allowed: 5.80)
Intercept result: FAILED

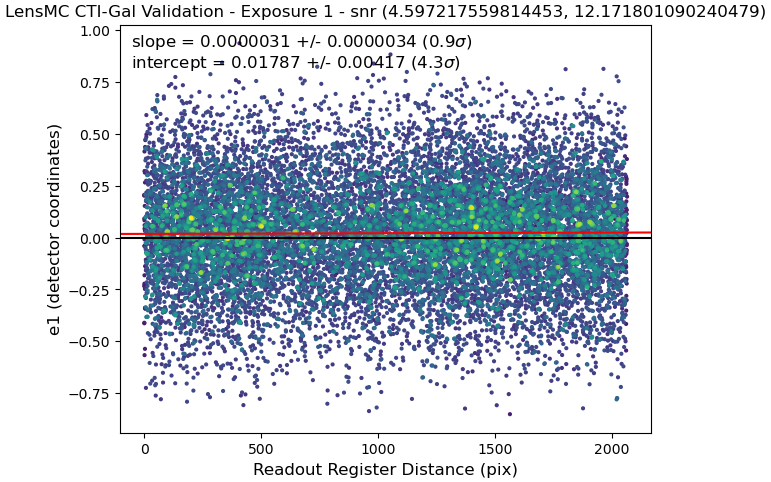

Bin 2
Bin limits: 4.597217559814453 to 12.171801090240479.
Slope Test Result
Slope = 3.088842959186877e-06 +/- 3.4263039196957834e-06
Z(Slope) = 0.9015087485313416 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.017872728407382965 +/- 0.004166358150541782
Z(Intercept) = 4.2897725105285645 (Max allowed: 5.80)
Intercept result: PASSED

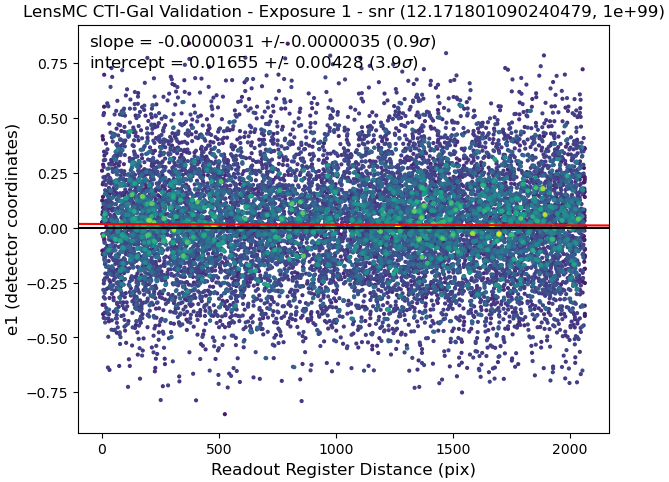

Bin 3
Bin limits: 12.171801090240479 to 1e+99.
Slope Test Result
Slope = -3.1137635687628062e-06 +/- 3.5315008517500246e-06
Z(Slope) = 0.8817111253738403 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.016554420813918114 +/- 0.004284980706870556
Z(Intercept) = 3.8633594512939453 (Max allowed: 5.80)
Intercept result: PASSED
