TC-SHE-100030-CTI-gal-size-LensMC-exp-108856
Table of Contents
General Information
Test Case ID: TC-SHE-100030-CTI-gal-size-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by SIZE. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

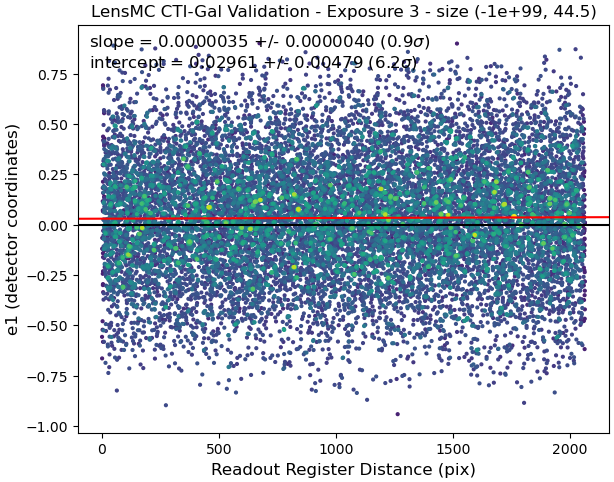

Bin 0
Bin limits: -1e+99 to 44.5.
Slope Test Result
Slope = 3.468984459686908e-06 +/- 3.99131977246725e-06
Z(Slope) = 0.8691321611404419 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02961018867790699 +/- 0.0047858343459665775
Z(Intercept) = 6.187048435211182 (Max allowed: 5.80)
Intercept result: FAILED

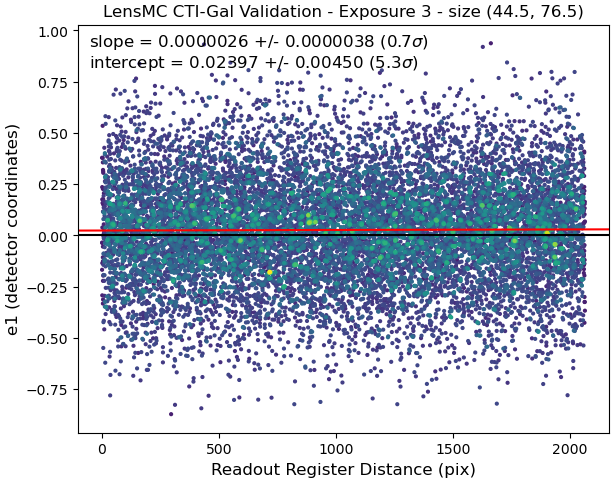

Bin 1
Bin limits: 44.5 to 76.5.
Slope Test Result
Slope = 2.61939430856728e-06 +/- 3.77870583179174e-06
Z(Slope) = 0.6931988000869751 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.023974306881427765 +/- 0.004504965152591467
Z(Intercept) = 5.321752071380615 (Max allowed: 5.80)
Intercept result: PASSED

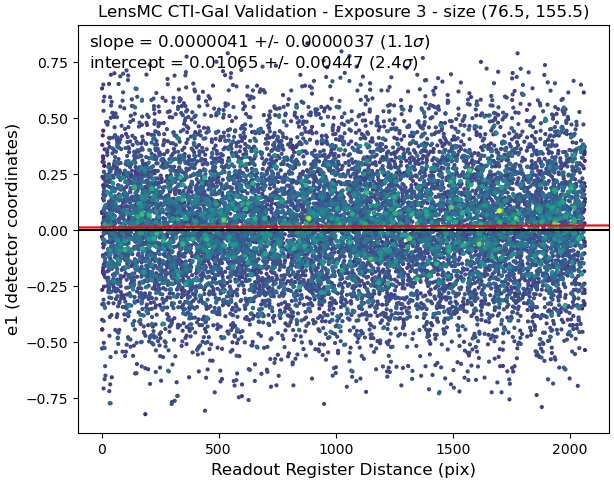

Bin 2
Bin limits: 76.5 to 155.5.
Slope Test Result
Slope = 4.12575400332571e-06 +/- 3.749490588234039e-06
Z(Slope) = 1.1003504991531372 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.01065327599644661 +/- 0.004466519691050053
Z(Intercept) = 2.3851401805877686 (Max allowed: 5.80)
Intercept result: PASSED

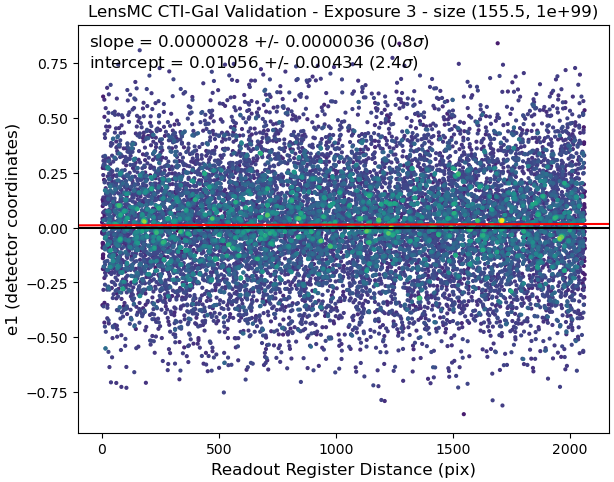

Bin 3
Bin limits: 155.5 to 1e+99.
Slope Test Result
Slope = 2.7886665066034766e-06 +/- 3.642343244791846e-06
Z(Slope) = 0.7656242847442627 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.010562990792095661 +/- 0.004338097292929888
Z(Intercept) = 2.434936285018921 (Max allowed: 5.80)
Intercept result: PASSED
