TC-SHE-100029-CTI-gal-bg-LensMC-exp-108855
Table of Contents
General Information
Test Case ID: TC-SHE-100029-CTI-gal-bg-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by background level. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

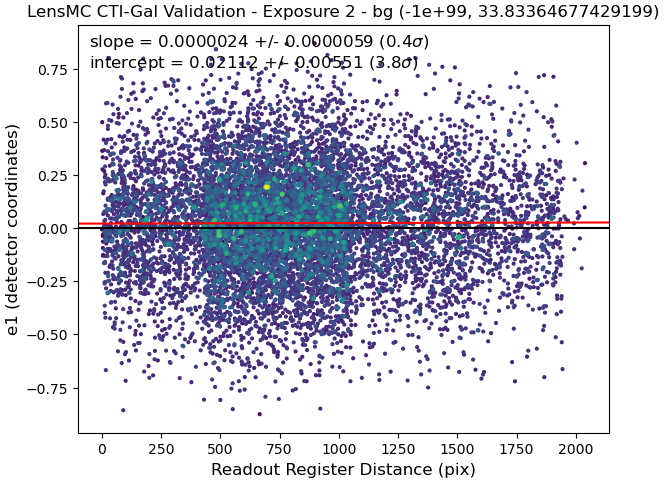

Bin 0
Bin limits: -1e+99 to 33.83364677429199.
Slope Test Result
Slope = 2.3903492092358647e-06 +/- 5.928303380642319e-06
Z(Slope) = 0.4032096564769745 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.021119941025972366 +/- 0.00550747150555253
Z(Intercept) = 3.834779977798462 (Max allowed: 5.80)
Intercept result: PASSED

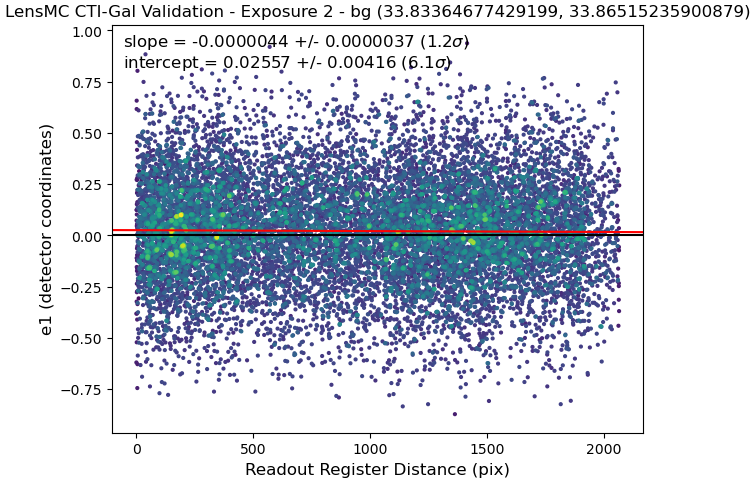

Bin 1
Bin limits: 33.83364677429199 to 33.86515235900879.
Slope Test Result
Slope = -4.419645392772509e-06 +/- 3.736857252079062e-06
Z(Slope) = 1.182717204093933 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02556784823536873 +/- 0.004164276644587517
Z(Intercept) = 6.139805316925049 (Max allowed: 5.80)
Intercept result: FAILED

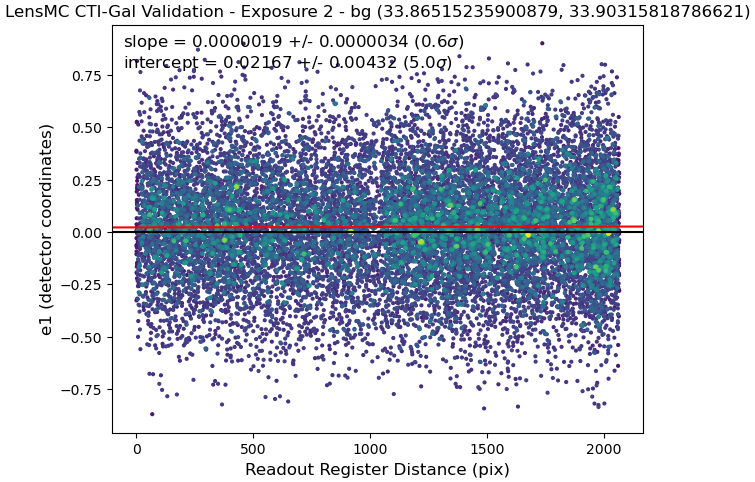

Bin 2
Bin limits: 33.86515235900879 to 33.90315818786621.
Slope Test Result
Slope = 1.9160790998284938e-06 +/- 3.3677081319183344e-06
Z(Slope) = 0.5689563751220703 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.021674858406186104 +/- 0.004323737230151892
Z(Intercept) = 5.012991428375244 (Max allowed: 5.80)
Intercept result: PASSED

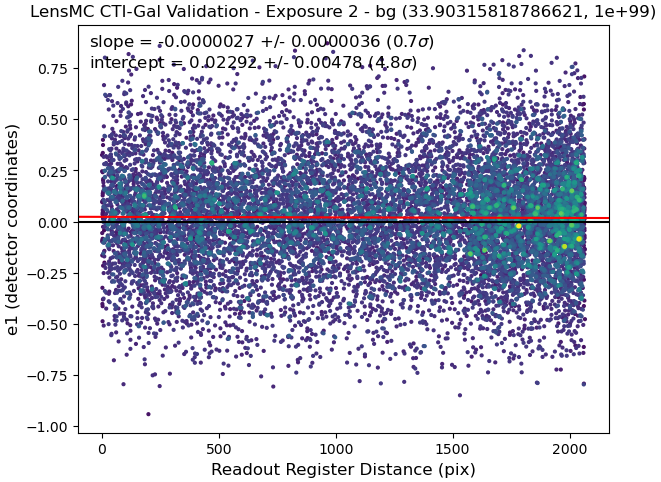

Bin 3
Bin limits: 33.90315818786621 to 1e+99.
Slope Test Result
Slope = -2.6504628749535186e-06 +/- 3.5893126550945453e-06
Z(Slope) = 0.7384318709373474 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.022924330085515976 +/- 0.0047769080847501755
Z(Intercept) = 4.798989295959473 (Max allowed: 5.80)
Intercept result: PASSED
