TC-SHE-100029-CTI-gal-bg-LensMC-exp-108856
Table of Contents
General Information
Test Case ID: TC-SHE-100029-CTI-gal-bg-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by background level. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

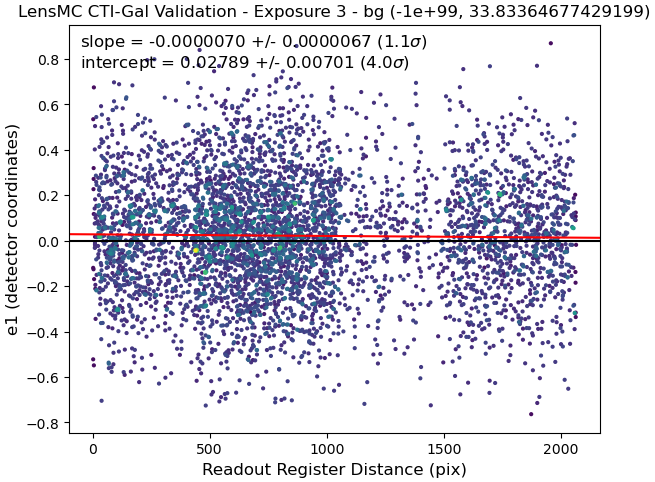

Bin 0
Bin limits: -1e+99 to 33.83364677429199.
Slope Test Result
Slope = -7.039211141091073e-06 +/- 6.689855581498705e-06
Z(Slope) = 1.052221655845642 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.027893463149666786 +/- 0.007011910900473595
Z(Intercept) = 3.9780116081237793 (Max allowed: 5.80)
Intercept result: PASSED

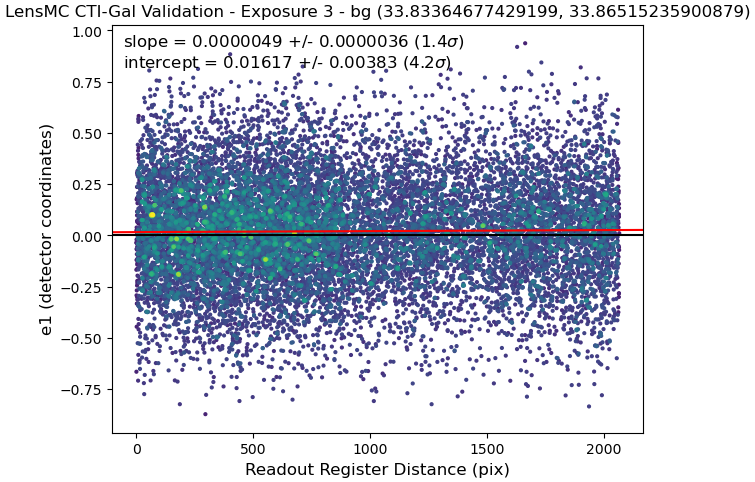

Bin 1
Bin limits: 33.83364677429199 to 33.86515235900879.
Slope Test Result
Slope = 4.9083196245192084e-06 +/- 3.5818693504552357e-06
Z(Slope) = 1.3703234195709229 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.016168158501386642 +/- 0.0038333649281412363
Z(Intercept) = 4.217745780944824 (Max allowed: 5.80)
Intercept result: PASSED

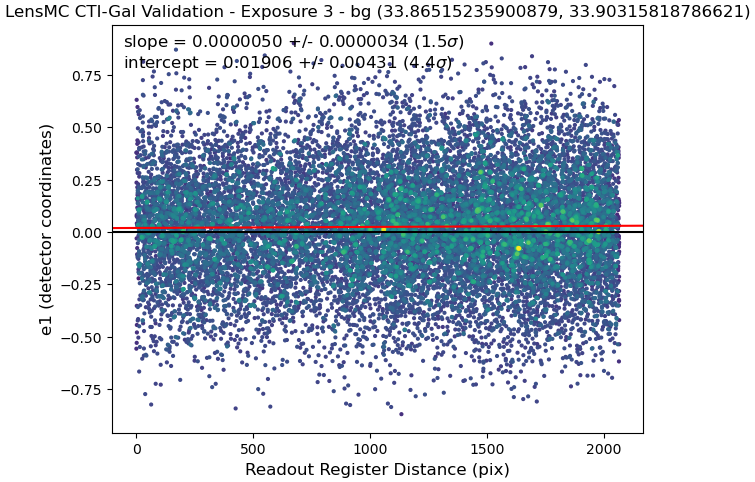

Bin 2
Bin limits: 33.86515235900879 to 33.90315818786621.
Slope Test Result
Slope = 4.9548093556950334e-06 +/- 3.382785280336975e-06
Z(Slope) = 1.4647129774093628 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.019059594720602036 +/- 0.004311104770749807
Z(Intercept) = 4.421046733856201 (Max allowed: 5.80)
Intercept result: PASSED

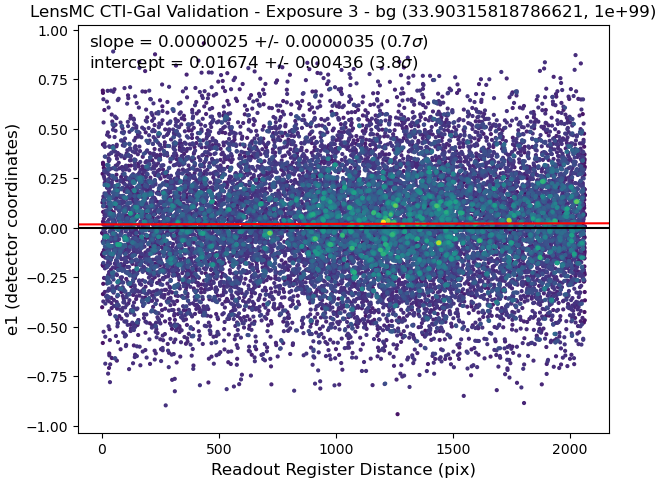

Bin 3
Bin limits: 33.90315818786621 to 1e+99.
Slope Test Result
Slope = 2.5061062842723913e-06 +/- 3.500183993310202e-06
Z(Slope) = 0.7159927487373352 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.01673908531665802 +/- 0.004364502616226673
Z(Intercept) = 3.8352789878845215 (Max allowed: 5.80)
Intercept result: PASSED
