TC-SHE-100030-CTI-gal-size-LensMC-exp-108853
Table of Contents
General Information
Test Case ID: TC-SHE-100030-CTI-gal-size-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by SIZE. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

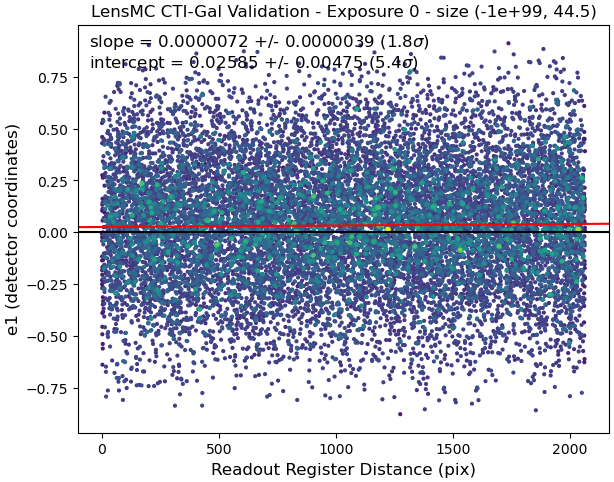

Bin 0
Bin limits: -1e+99 to 44.5.
Slope Test Result
Slope = 7.207466296677012e-06 +/- 3.949291567550972e-06
Z(Slope) = 1.8250023126602173 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.025846276432275772 +/- 0.004745761398226023
Z(Intercept) = 5.446181297302246 (Max allowed: 5.80)
Intercept result: PASSED

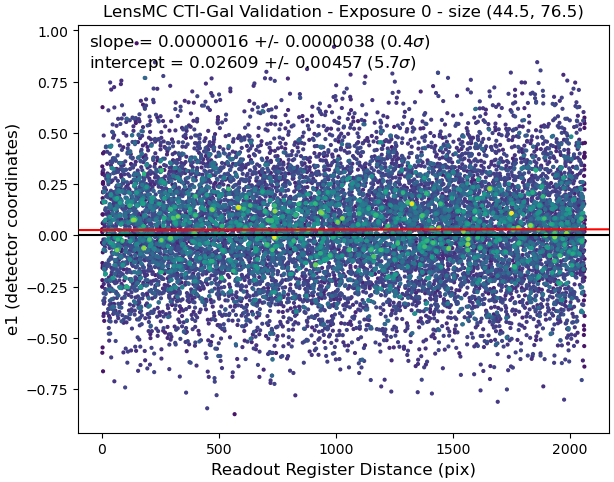

Bin 1
Bin limits: 44.5 to 76.5.
Slope Test Result
Slope = 1.5520855640716036e-06 +/- 3.7945205804135185e-06
Z(Slope) = 0.4090333878993988 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.026086164638400078 +/- 0.004565495532006025
Z(Intercept) = 5.713764190673828 (Max allowed: 5.80)
Intercept result: PASSED

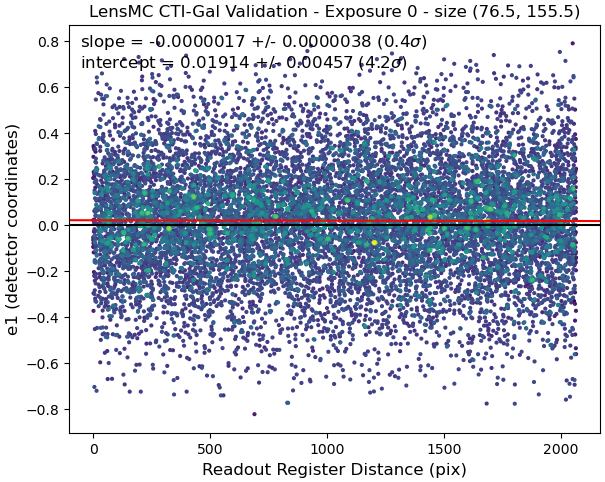

Bin 2
Bin limits: 76.5 to 155.5.
Slope Test Result
Slope = -1.6518420125066768e-06 +/- 3.815052878053393e-06
Z(Slope) = 0.43298012018203735 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.019138380885124207 +/- 0.004573347046971321
Z(Intercept) = 4.184764385223389 (Max allowed: 5.80)
Intercept result: PASSED

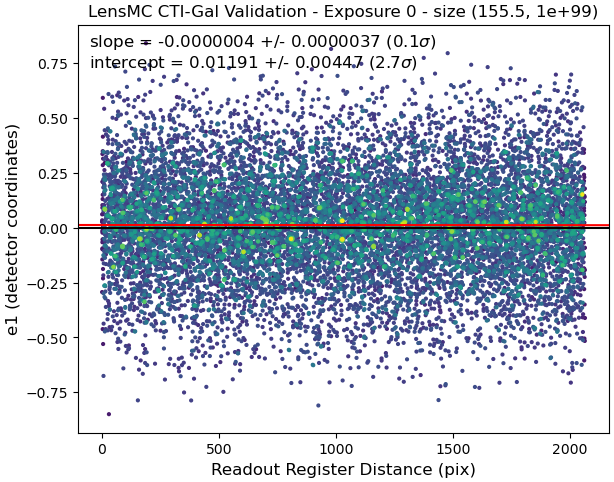

Bin 3
Bin limits: 155.5 to 1e+99.
Slope Test Result
Slope = -3.9788977801435976e-07 +/- 3.703544052768848e-06
Z(Slope) = 0.10743486881256104 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.011910158209502697 +/- 0.004471732769161463
Z(Intercept) = 2.6634323596954346 (Max allowed: 5.80)
Intercept result: PASSED
