TC-SHE-100028-CTI-gal-SNR-LensMC-exp-108856
Table of Contents
General Information
Test Case ID: TC-SHE-100028-CTI-gal-SNR-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by SNR. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

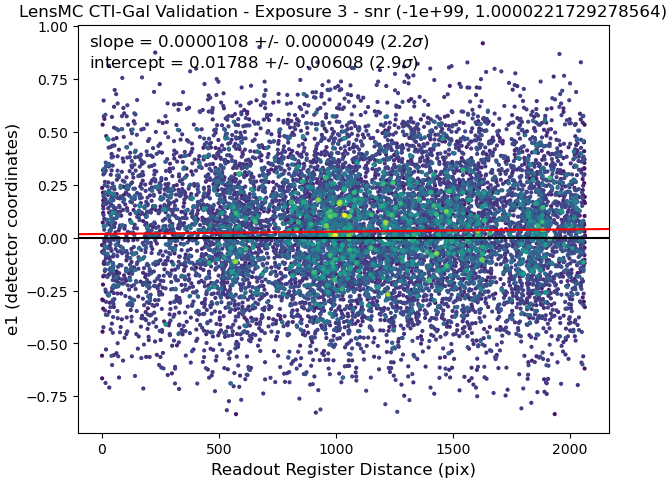

Bin 0
Bin limits: -1e+99 to 1.0000221729278564.
Slope Test Result
Slope = 1.0771779670903925e-05 +/- 4.88243995278026e-06
Z(Slope) = 2.206228733062744 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.017878228798508644 +/- 0.006076418794691563
Z(Intercept) = 2.9422311782836914 (Max allowed: 5.80)
Intercept result: PASSED

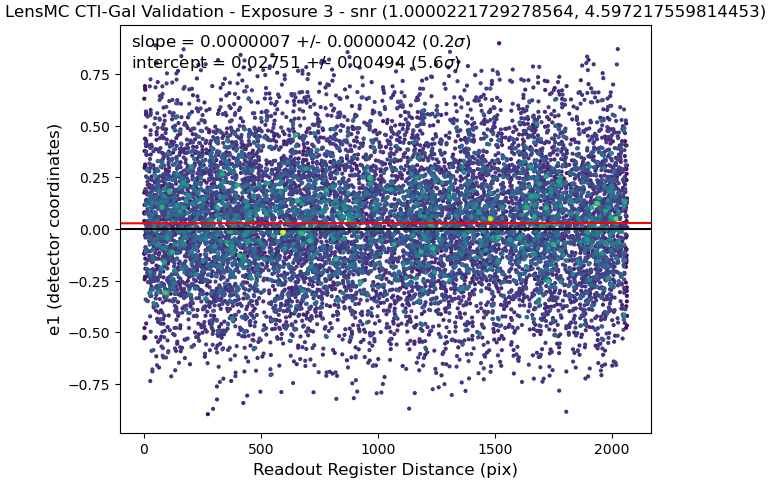

Bin 1
Bin limits: 1.0000221729278564 to 4.597217559814453.
Slope Test Result
Slope = 6.87442707203445e-07 +/- 4.1648563637863845e-06
Z(Slope) = 0.1650579571723938 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.027512043714523315 +/- 0.004935850854963064
Z(Intercept) = 5.573921203613281 (Max allowed: 5.80)
Intercept result: PASSED

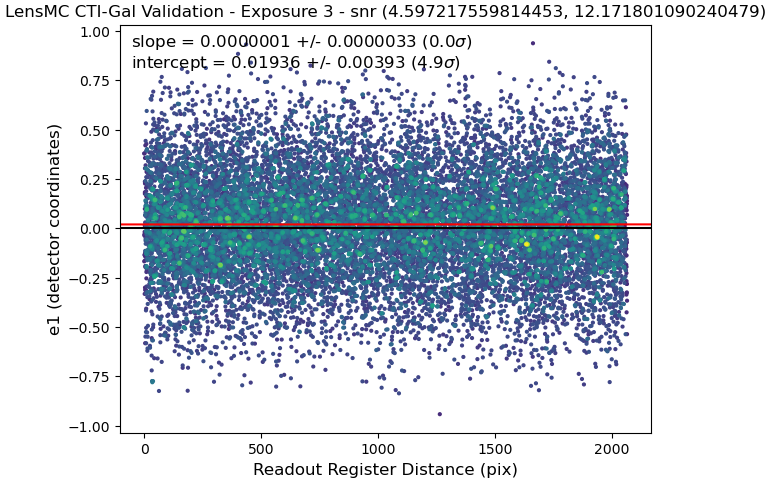

Bin 2
Bin limits: 4.597217559814453 to 12.171801090240479.
Slope Test Result
Slope = 1.2338693977653747e-07 +/- 3.318832796139759e-06
Z(Slope) = 0.037177812308073044 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.019360145553946495 +/- 0.003929669037461281
Z(Intercept) = 4.926660537719727 (Max allowed: 5.80)
Intercept result: PASSED

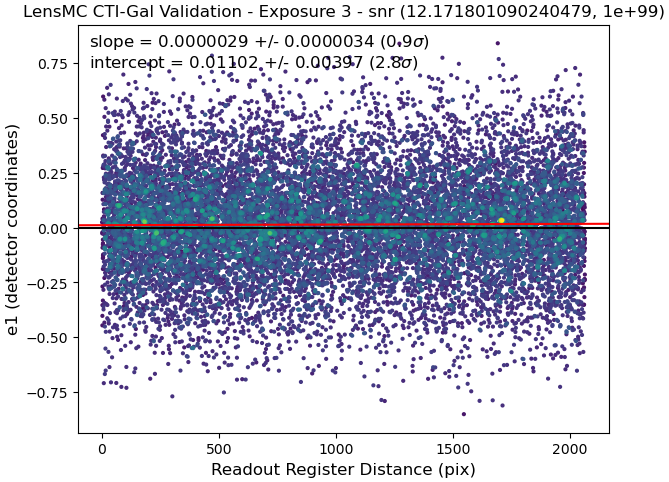

Bin 3
Bin limits: 12.171801090240479 to 1e+99.
Slope Test Result
Slope = 2.940453896371764e-06 +/- 3.3862636428239057e-06
Z(Slope) = 0.8683475852012634 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.0110200559720397 +/- 0.003974460996687412
Z(Intercept) = 2.772716999053955 (Max allowed: 5.80)
Intercept result: PASSED
