TC-SHE-100028-CTI-gal-SNR-LensMC-obs
Table of Contents
General Information
Test Case ID: TC-SHE-100028-CTI-gal-SNR-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by SNR. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

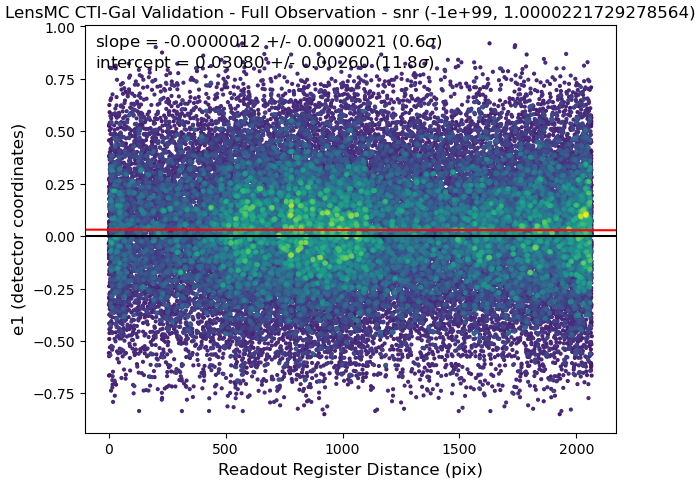

Bin 0
Bin limits: -1e+99 to 1.0000221729278564.
Slope Test Result
Slope = -1.227554093929939e-06 +/- 1.3520538004740956e-06
Z(Slope) = 0.9079180955886841 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.03079872764647007 +/- 0.002581893466413021
Z(Intercept) = 11.928736686706543 (Max allowed: 5.80)
Intercept result: FAILED

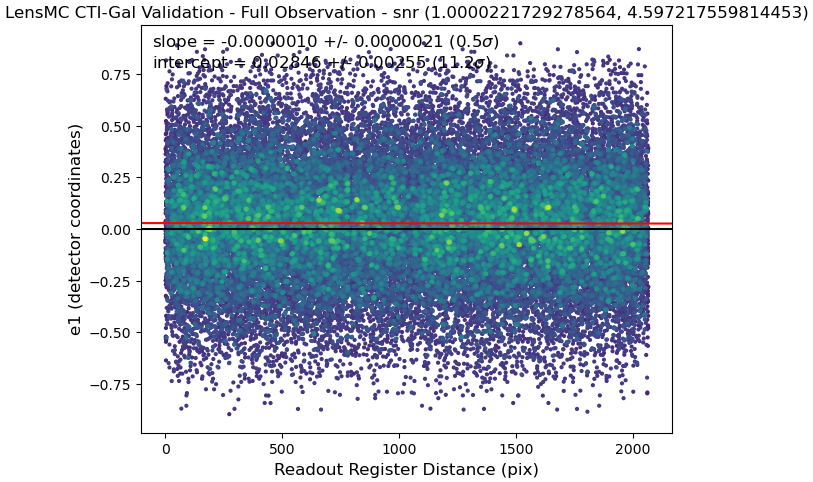

Bin 1
Bin limits: 1.0000221729278564 to 4.597217559814453.
Slope Test Result
Slope = -1.0019360843216418e-06 +/- 1.1745802339646616e-06
Z(Slope) = 0.8530163168907166 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.028462829068303108 +/- 0.002682275138795376
Z(Intercept) = 10.6114501953125 (Max allowed: 5.80)
Intercept result: FAILED

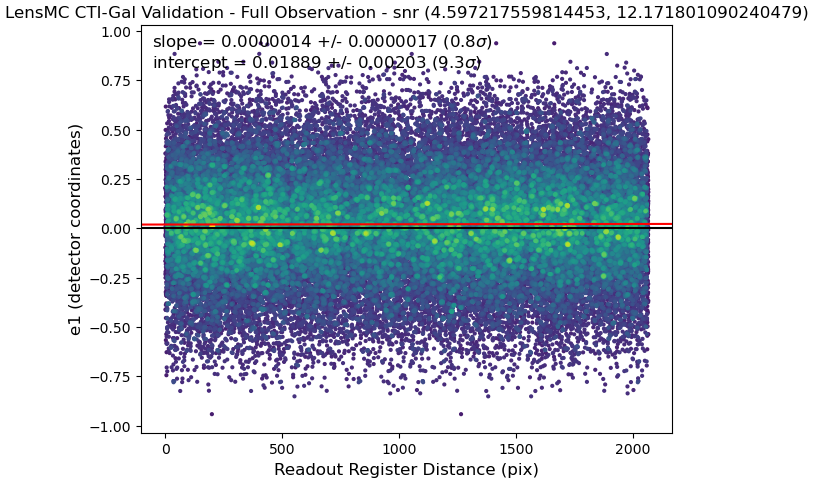

Bin 2
Bin limits: 4.597217559814453 to 12.171801090240479.
Slope Test Result
Slope = 1.4135343917587306e-06 +/- 9.297359611082356e-07
Z(Slope) = 1.520361065864563 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.018887806683778763 +/- 0.0022010321263223886
Z(Intercept) = 8.581340789794922 (Max allowed: 5.80)
Intercept result: FAILED

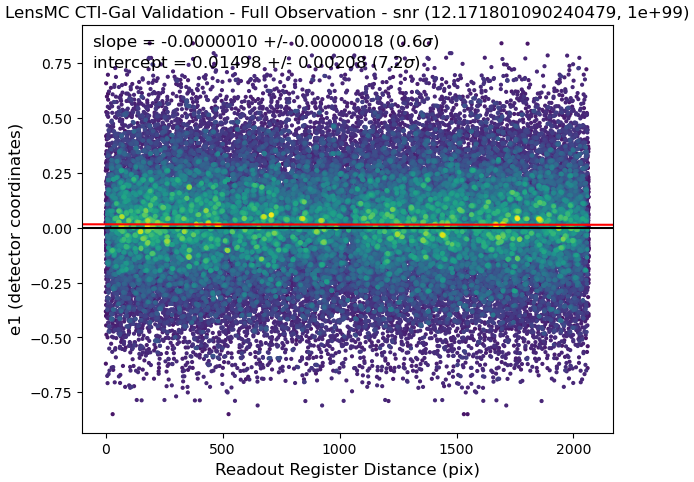

Bin 3
Bin limits: 12.171801090240479 to 1e+99.
Slope Test Result
Slope = -9.71440954344871e-07 +/- 9.067030646292551e-07
Z(Slope) = 1.071399211883545 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.014979868195950985 +/- 0.0020131480414420366
Z(Intercept) = 7.441016674041748 (Max allowed: 5.80)
Intercept result: FAILED
