TC-SHE-100029-CTI-gal-bg-LensMC-exp-108853
Table of Contents
General Information
Test Case ID: TC-SHE-100029-CTI-gal-bg-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by background level. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

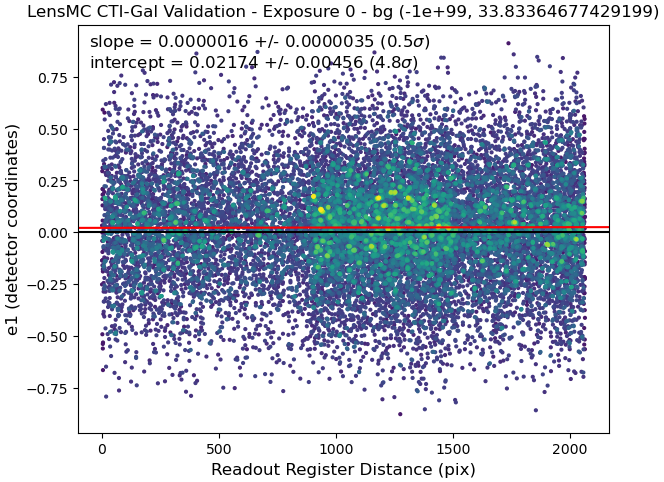

Bin 0
Bin limits: -1e+99 to 33.83364677429199.
Slope Test Result
Slope = 1.599781853656168e-06 +/- 3.5471255159791326e-06
Z(Slope) = 0.4510079622268677 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.021736159920692444 +/- 0.004564100410789251
Z(Intercept) = 4.7624192237854 (Max allowed: 5.80)
Intercept result: PASSED

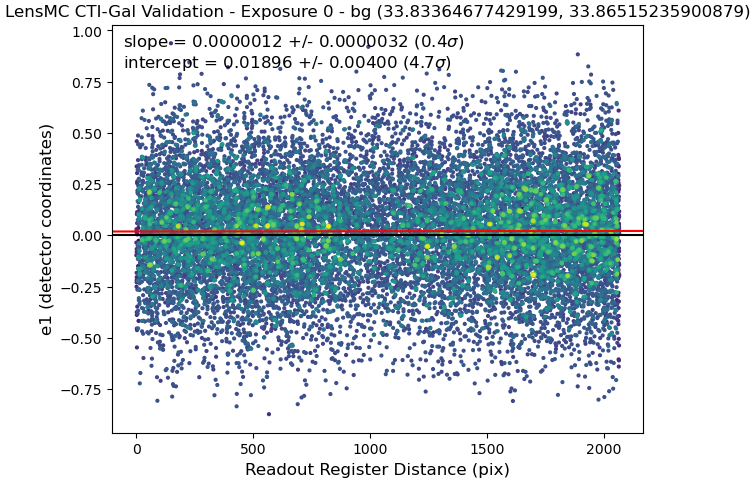

Bin 1
Bin limits: 33.83364677429199 to 33.86515235900879.
Slope Test Result
Slope = 1.1977588201261824e-06 +/- 3.2315381304215407e-06
Z(Slope) = 0.3706466555595398 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.018964651972055435 +/- 0.004002861678600311
Z(Intercept) = 4.737773418426514 (Max allowed: 5.80)
Intercept result: PASSED

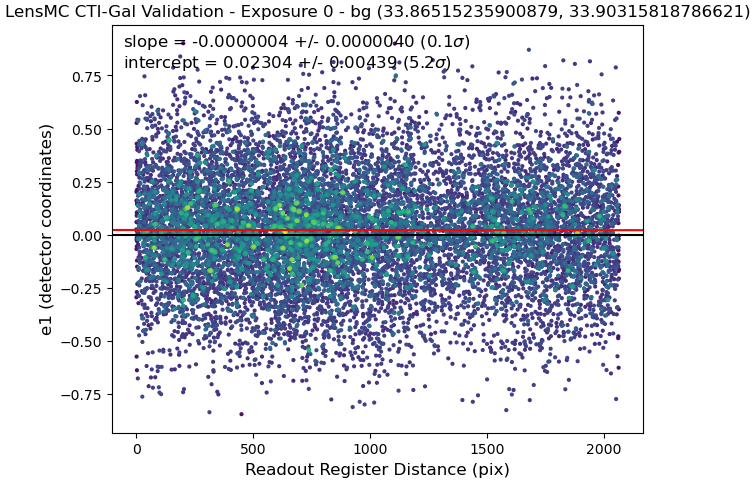

Bin 2
Bin limits: 33.86515235900879 to 33.90315818786621.
Slope Test Result
Slope = -3.945984872189001e-07 +/- 4.0024006011663005e-06
Z(Slope) = 0.09859045594930649 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02303897961974144 +/- 0.0043905205093324184
Z(Intercept) = 5.247437000274658 (Max allowed: 5.80)
Intercept result: PASSED

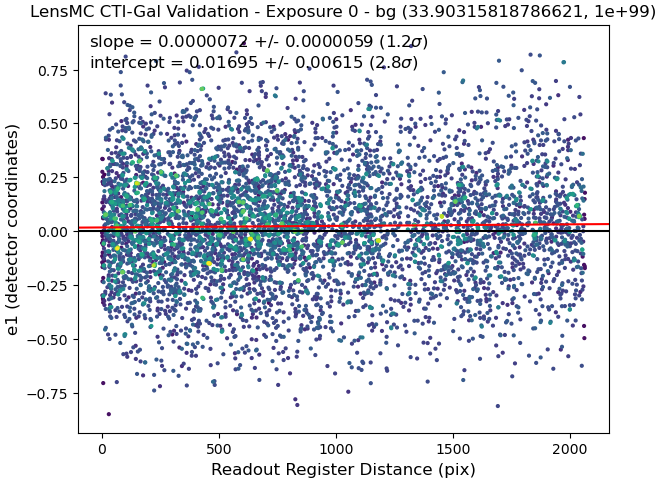

Bin 3
Bin limits: 33.90315818786621 to 1e+99.
Slope Test Result
Slope = 7.237022600747878e-06 +/- 5.9006929404858965e-06
Z(Slope) = 1.2264699935913086 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.01695164106786251 +/- 0.006150254514068365
Z(Intercept) = 2.7562503814697266 (Max allowed: 5.80)
Intercept result: PASSED
