TC-SHE-100029-CTI-gal-bg-LensMC-obs
Table of Contents
General Information
Test Case ID: TC-SHE-100029-CTI-gal-bg-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by background level. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

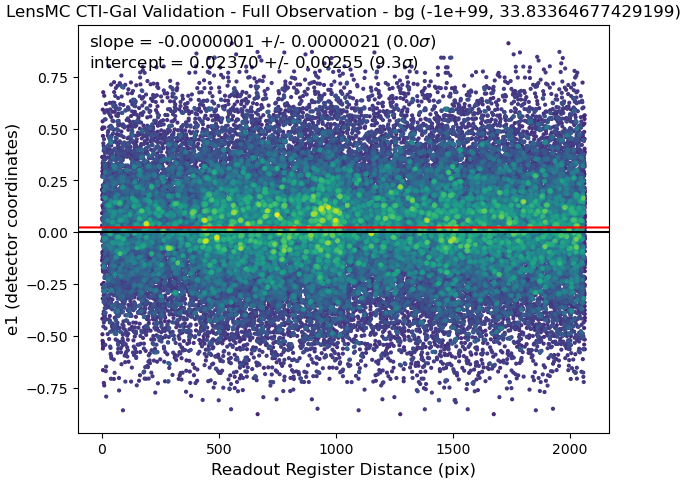

Bin 0
Bin limits: -1e+99 to 33.83364677429199.
Slope Test Result
Slope = -8.874216206322671e-08 +/- 1.2625183671843843e-06
Z(Slope) = 0.07028979808092117 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02370058000087738 +/- 0.002490971703082323
Z(Intercept) = 9.514592170715332 (Max allowed: 5.80)
Intercept result: FAILED

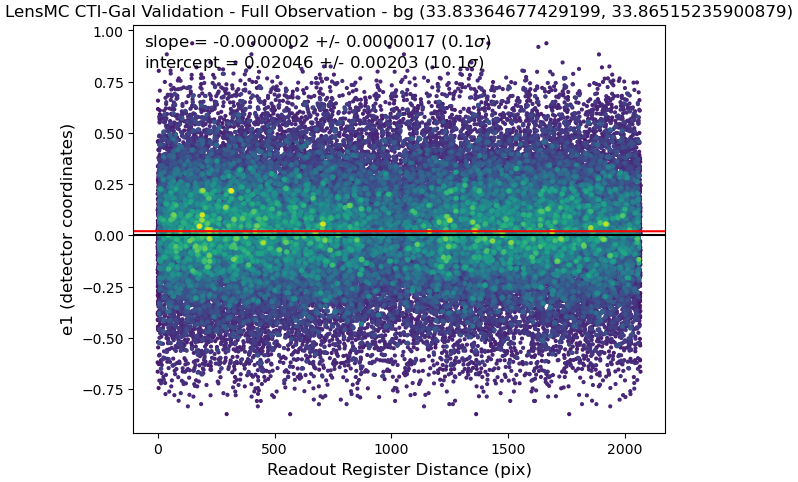

Bin 1
Bin limits: 33.83364677429199 to 33.86515235900879.
Slope Test Result
Slope = -1.6860646212535357e-07 +/- 7.907011081442761e-07
Z(Slope) = 0.21323665976524353 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02045854739844799 +/- 0.002138679614290595
Z(Intercept) = 9.565971374511719 (Max allowed: 5.80)
Intercept result: FAILED

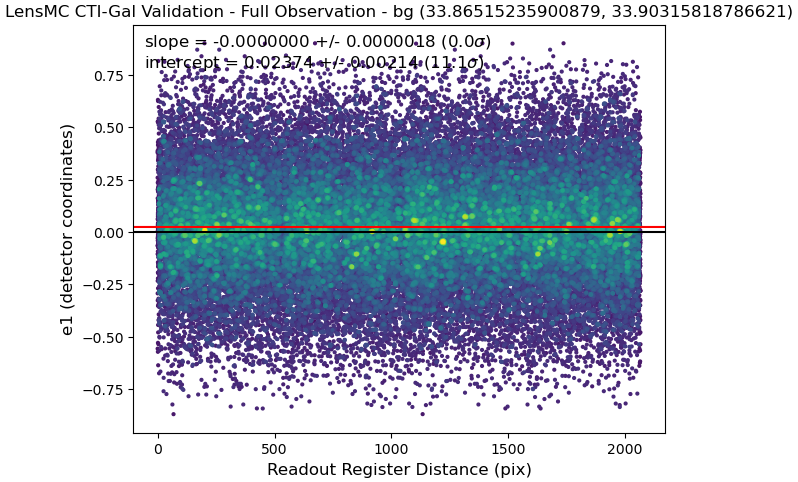

Bin 2
Bin limits: 33.86515235900879 to 33.90315818786621.
Slope Test Result
Slope = -1.746055389162393e-08 +/- 1.0377031003372394e-06
Z(Slope) = 0.01682615652680397 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02373926155269146 +/- 0.002298325765877962
Z(Intercept) = 10.328936576843262 (Max allowed: 5.80)
Intercept result: FAILED

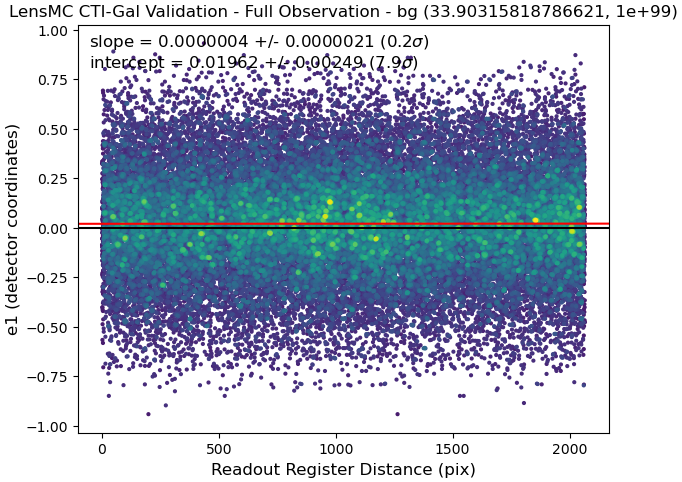

Bin 3
Bin limits: 33.90315818786621 to 1e+99.
Slope Test Result
Slope = 3.8260969859038596e-07 +/- 1.3686097872778191e-06
Z(Slope) = 0.2795608341693878 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.019617589190602303 +/- 0.00248352880589664
Z(Intercept) = 7.899078369140625 (Max allowed: 5.80)
Intercept result: FAILED
