TC-SHE-100028-CTI-gal-SNR-LensMC-exp-108853
Table of Contents
General Information
Test Case ID: TC-SHE-100028-CTI-gal-SNR-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by SNR. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

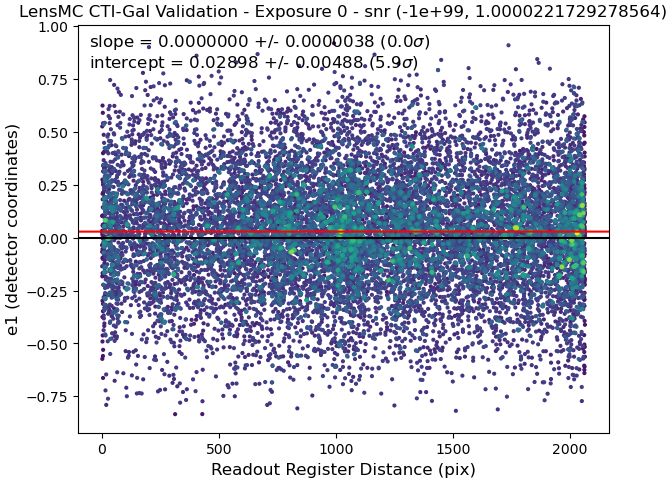

Bin 0
Bin limits: -1e+99 to 1.0000221729278564.
Slope Test Result
Slope = 4.066295389293373e-08 +/- 3.848751475743484e-06
Z(Slope) = 0.01056523248553276 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.028983213007450104 +/- 0.0048769451677799225
Z(Intercept) = 5.9429030418396 (Max allowed: 5.80)
Intercept result: FAILED

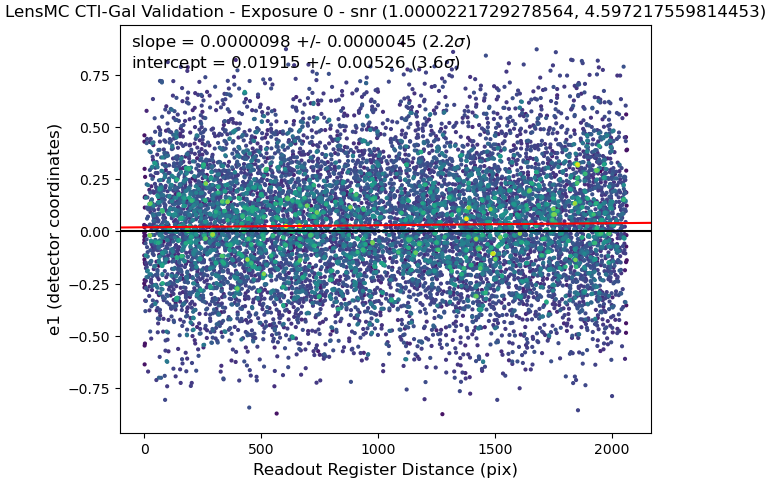

Bin 1
Bin limits: 1.0000221729278564 to 4.597217559814453.
Slope Test Result
Slope = 9.787373528524768e-06 +/- 4.463469394977437e-06
Z(Slope) = 2.192772626876831 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.019150633364915848 +/- 0.005264347419142723
Z(Intercept) = 3.6377980709075928 (Max allowed: 5.80)
Intercept result: PASSED

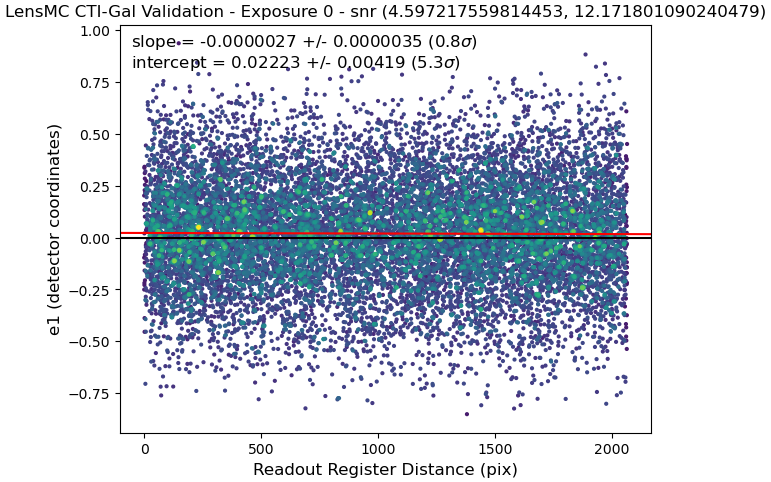

Bin 2
Bin limits: 4.597217559814453 to 12.171801090240479.
Slope Test Result
Slope = -2.6728562261268962e-06 +/- 3.5456998830341036e-06
Z(Slope) = 0.7538303732872009 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.022225385531783104 +/- 0.0041854786686599255
Z(Intercept) = 5.310118198394775 (Max allowed: 5.80)
Intercept result: PASSED

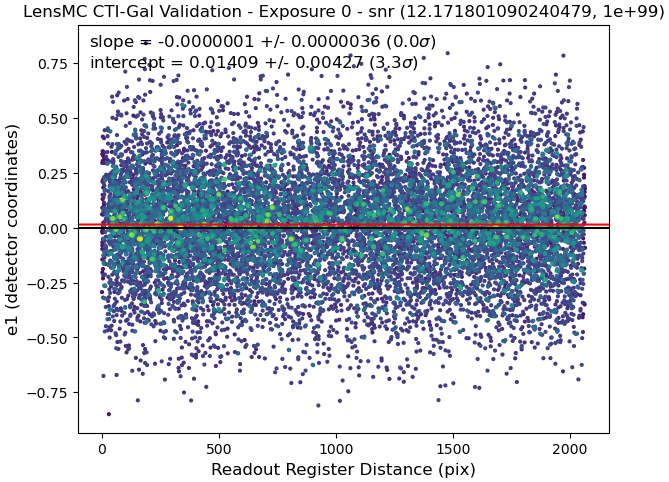

Bin 3
Bin limits: 12.171801090240479 to 1e+99.
Slope Test Result
Slope = -1.193774039620621e-07 +/- 3.6231490412319545e-06
Z(Slope) = 0.03294852003455162 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.014094619080424309 +/- 0.00427205441519618
Z(Intercept) = 3.299260139465332 (Max allowed: 5.80)
Intercept result: PASSED
