TC-SHE-100028-CTI-gal-SNR-LensMC-exp-108855
Table of Contents
General Information
Test Case ID: TC-SHE-100028-CTI-gal-SNR-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by SNR. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

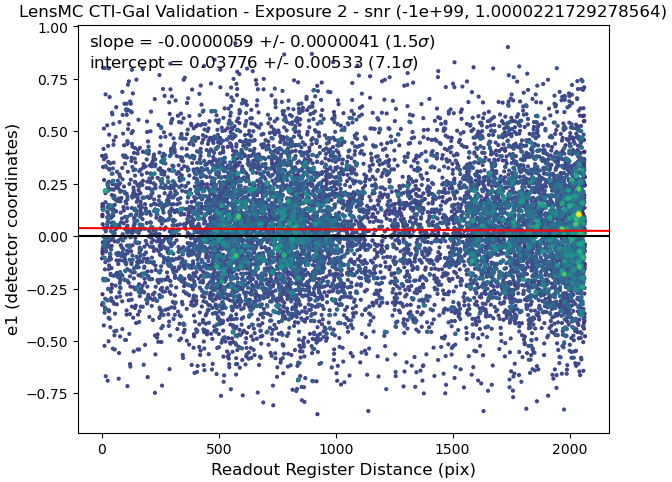

Bin 0
Bin limits: -1e+99 to 1.0000221729278564.
Slope Test Result
Slope = -5.919026989431586e-06 +/- 4.075763627042761e-06
Z(Slope) = 1.4522497653961182 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.03776134178042412 +/- 0.005328834056854248
Z(Intercept) = 7.0862298011779785 (Max allowed: 5.80)
Intercept result: FAILED

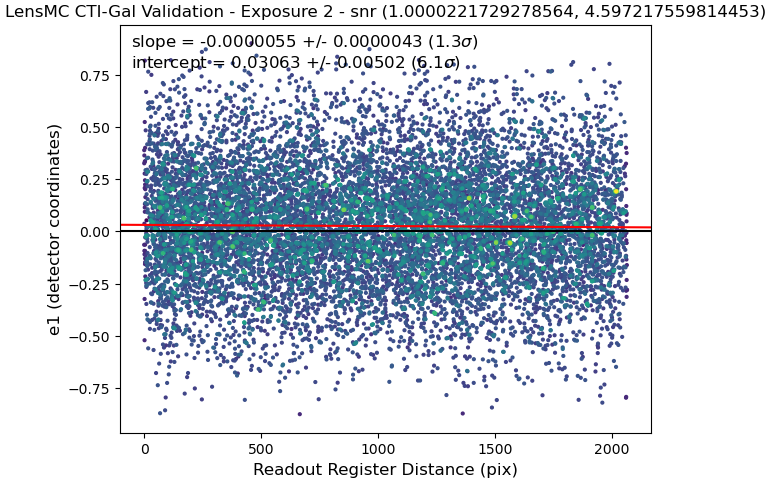

Bin 1
Bin limits: 1.0000221729278564 to 4.597217559814453.
Slope Test Result
Slope = -5.476813839777606e-06 +/- 4.342115062172525e-06
Z(Slope) = 1.2613239288330078 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.03062801994383335 +/- 0.005023507867008448
Z(Intercept) = 6.096938610076904 (Max allowed: 5.80)
Intercept result: FAILED

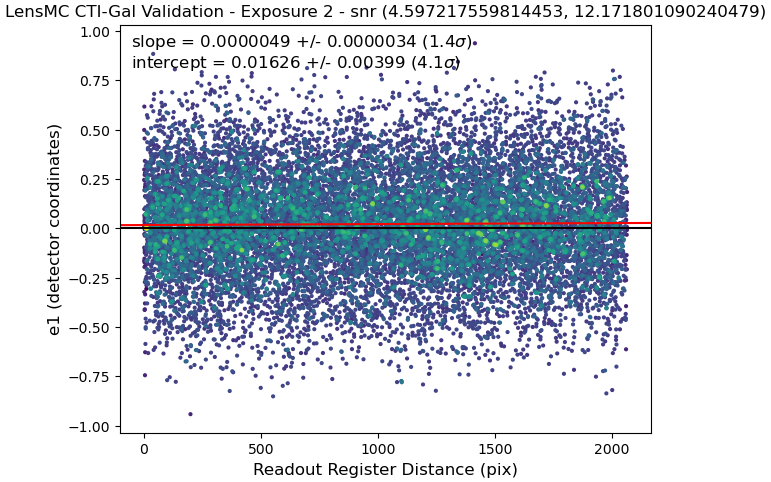

Bin 2
Bin limits: 4.597217559814453 to 12.171801090240479.
Slope Test Result
Slope = 4.921262188872788e-06 +/- 3.438843350522802e-06
Z(Slope) = 1.43108069896698 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.016256369650363922 +/- 0.003987013828009367
Z(Intercept) = 4.077329635620117 (Max allowed: 5.80)
Intercept result: PASSED

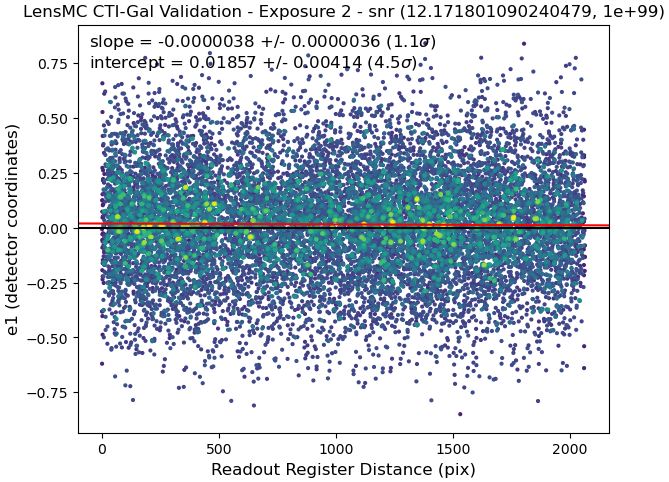

Bin 3
Bin limits: 12.171801090240479 to 1e+99.
Slope Test Result
Slope = -3.845268565783044e-06 +/- 3.5568018574849702e-06
Z(Slope) = 1.0811028480529785 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.01856761798262596 +/- 0.004138851538300514
Z(Intercept) = 4.486176490783691 (Max allowed: 5.80)
Intercept result: PASSED
