TC-SHE-100030-CTI-gal-size-LensMC-obs
Table of Contents
General Information
Test Case ID: TC-SHE-100030-CTI-gal-size-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by SIZE. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

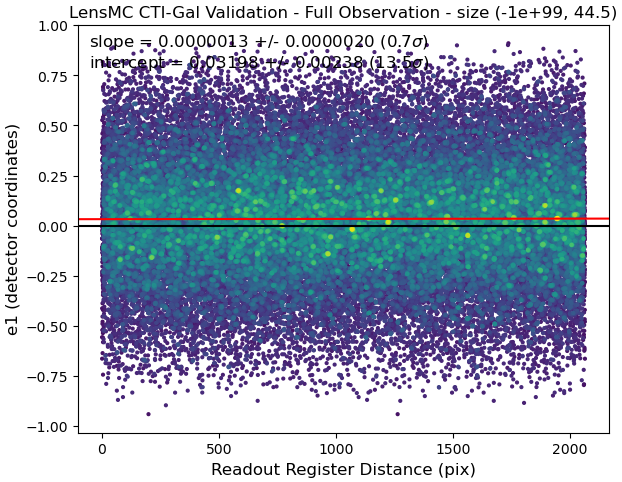

Bin 0
Bin limits: -1e+99 to 44.5.
Slope Test Result
Slope = 1.301910515394411e-06 +/- 1.242779376298131e-06
Z(Slope) = 1.0475797653198242 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.031979501247406006 +/- 0.0026839652564376593
Z(Intercept) = 11.915020942687988 (Max allowed: 5.80)
Intercept result: FAILED
Bin 1
Bin limits: 44.5 to 76.5.
Slope Test Result
Slope = -1.3824634947923187e-07 +/- 1.0288517842127476e-06
Z(Slope) = 0.13436955213546753 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02724836766719818 +/- 0.002260820474475622
Z(Intercept) = 12.052424430847168 (Max allowed: 5.80)
Intercept result: FAILED

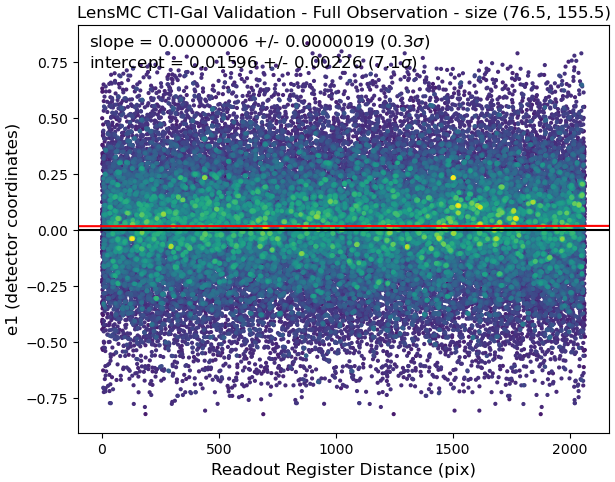

Bin 2
Bin limits: 76.5 to 155.5.
Slope Test Result
Slope = 5.931771625000692e-07 +/- 1.053472487910767e-06
Z(Slope) = 0.5630685091018677 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.015961041674017906 +/- 0.0023939853999763727
Z(Intercept) = 6.667142391204834 (Max allowed: 5.80)
Intercept result: FAILED

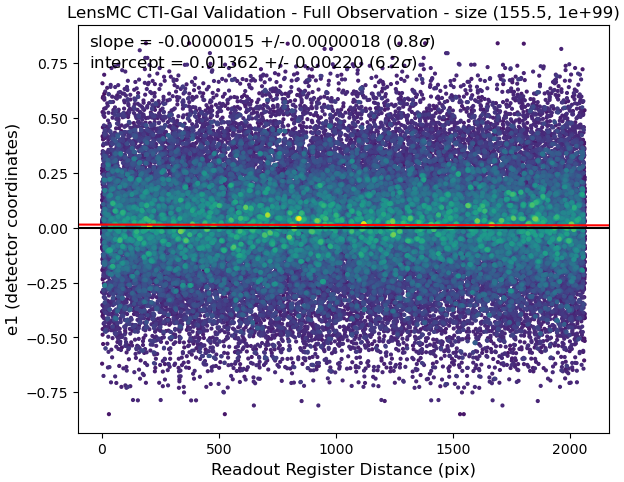

Bin 3
Bin limits: 155.5 to 1e+99.
Slope Test Result
Slope = -1.5101020380825503e-06 +/- 1.0204805676039541e-06
Z(Slope) = 1.479794979095459 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.013624085113406181 +/- 0.0020834810566157103
Z(Intercept) = 6.539097309112549 (Max allowed: 5.80)
Intercept result: FAILED
