TC-SHE-100031-CTI-gal-colour-LensMC-exp-108855
Table of Contents
General Information
Test Case ID: TC-SHE-100031-CTI-gal-colour-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by COLOUR. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

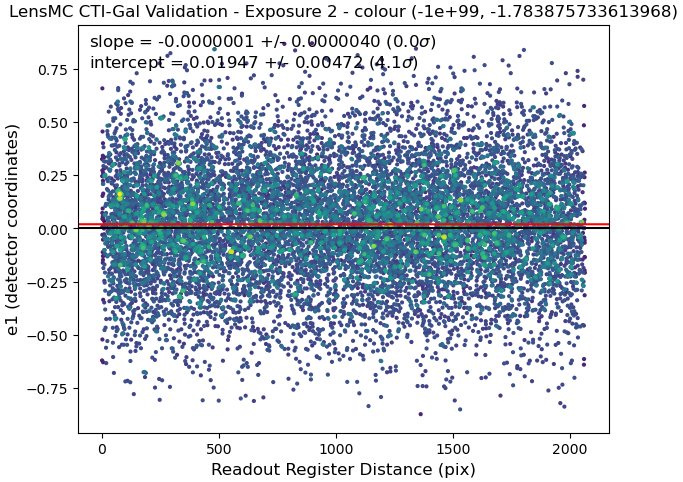

Bin 0
Bin limits: -1e+99 to -1.783875733613968.
Slope Test Result
Slope = -5.241113498755112e-08 +/- 4.04189540859079e-06
Z(Slope) = 0.012966969981789589 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.019473029300570488 +/- 0.00472329230979085
Z(Intercept) = 4.122766017913818 (Max allowed: 5.80)
Intercept result: PASSED

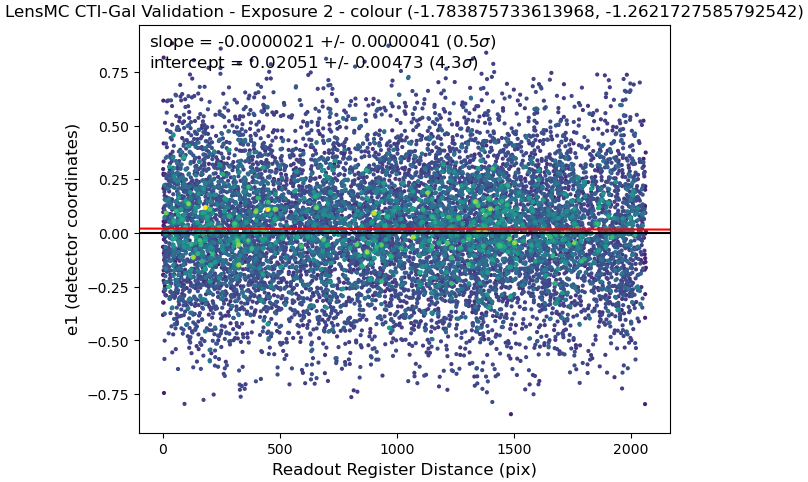

Bin 1
Bin limits: -1.783875733613968 to -1.2621727585792542.
Slope Test Result
Slope = -2.0527461401798064e-06 +/- 4.087430170329753e-06
Z(Slope) = 0.502209484577179 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.020507903769612312 +/- 0.00473294872790575
Z(Intercept) = 4.3330078125 (Max allowed: 5.80)
Intercept result: PASSED

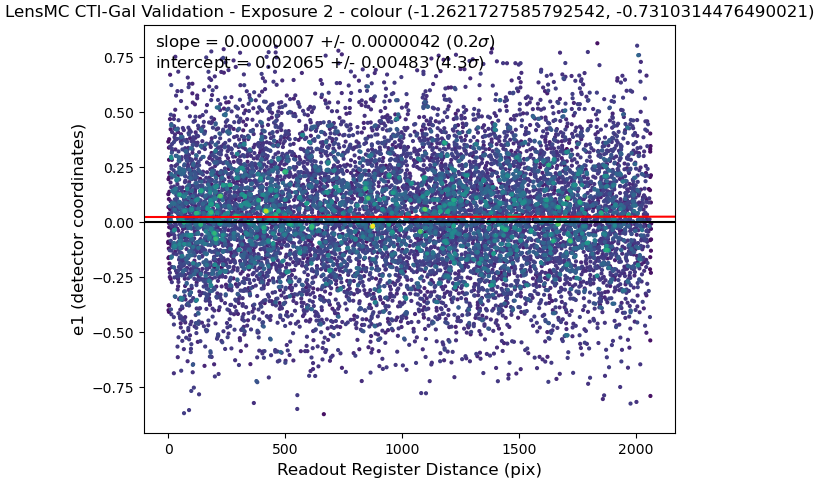

Bin 2
Bin limits: -1.2621727585792542 to -0.7310314476490021.
Slope Test Result
Slope = 6.709958029205154e-07 +/- 4.190135769022163e-06
Z(Slope) = 0.16013701260089874 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02065329998731613 +/- 0.004828897770494223
Z(Intercept) = 4.277021408081055 (Max allowed: 5.80)
Intercept result: PASSED

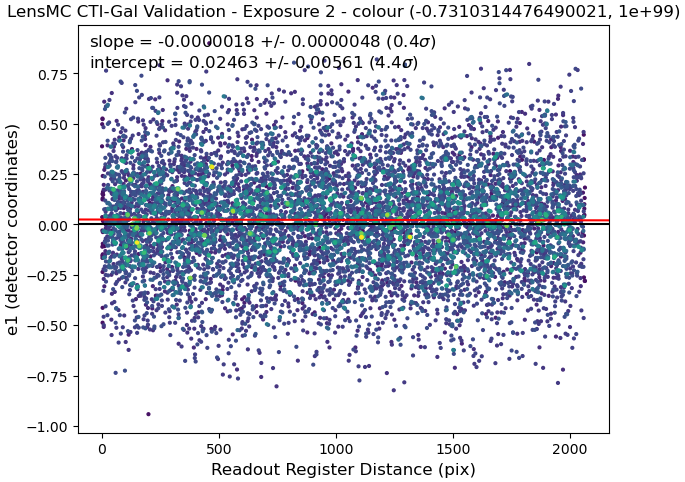

Bin 3
Bin limits: -0.7310314476490021 to 1e+99.
Slope Test Result
Slope = -1.8386318743068841e-06 +/- 4.815205102204345e-06
Z(Slope) = 0.38183873891830444 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02462957613170147 +/- 0.005607045255601406
Z(Intercept) = 4.392612457275391 (Max allowed: 5.80)
Intercept result: PASSED
