TC-SHE-100030-CTI-gal-size-LensMC-exp-108855
Table of Contents
General Information
Test Case ID: TC-SHE-100030-CTI-gal-size-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by SIZE. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

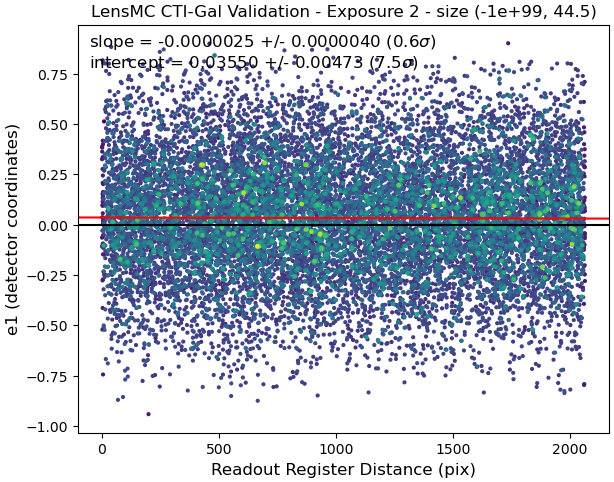

Bin 0
Bin limits: -1e+99 to 44.5.
Slope Test Result
Slope = -2.52804352385283e-06 +/- 3.961638867622241e-06
Z(Slope) = 0.6381307244300842 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.03549805283546448 +/- 0.004727160092443228
Z(Intercept) = 7.509382247924805 (Max allowed: 5.80)
Intercept result: FAILED

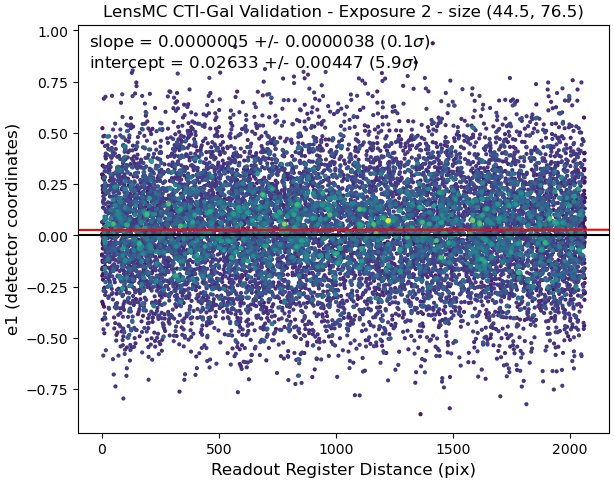

Bin 1
Bin limits: 44.5 to 76.5.
Slope Test Result
Slope = 5.17937053245987e-07 +/- 3.7591787531709997e-06
Z(Slope) = 0.13777931034564972 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02633475512266159 +/- 0.004472949542105198
Z(Intercept) = 5.887559413909912 (Max allowed: 5.80)
Intercept result: FAILED

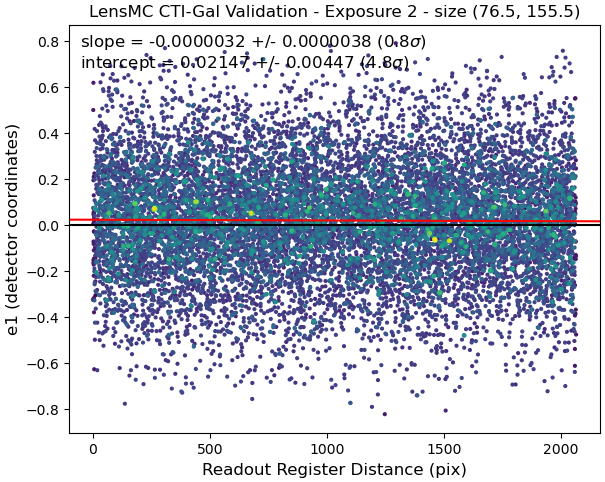

Bin 2
Bin limits: 76.5 to 155.5.
Slope Test Result
Slope = -3.1664571906731e-06 +/- 3.751014673980535e-06
Z(Slope) = 0.8441601991653442 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.02147185616195202 +/- 0.004471410531550646
Z(Intercept) = 4.802031993865967 (Max allowed: 5.80)
Intercept result: PASSED

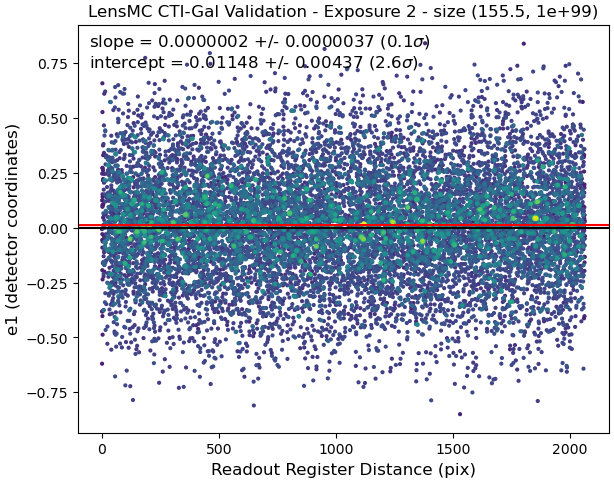

Bin 3
Bin limits: 155.5 to 1e+99.
Slope Test Result
Slope = 2.088521142695754e-07 +/- 3.6698979783977848e-06
Z(Slope) = 0.05690951645374298 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.011484644375741482 +/- 0.0043709310702979565
Z(Intercept) = 2.627505302429199 (Max allowed: 5.80)
Intercept result: PASSED
