TC-SHE-100030-CTI-gal-size-LensMC-exp-108854
Table of Contents
General Information
Test Case ID: TC-SHE-100030-CTI-gal-size-LensMC
Description: Linear dependence of residual galaxy ellipticity with read-out register distance (slope). Binned by SIZE. Shear estimation method: ShearEstimationMethods.LENSMC.
Result: PASSED
Results and Figures

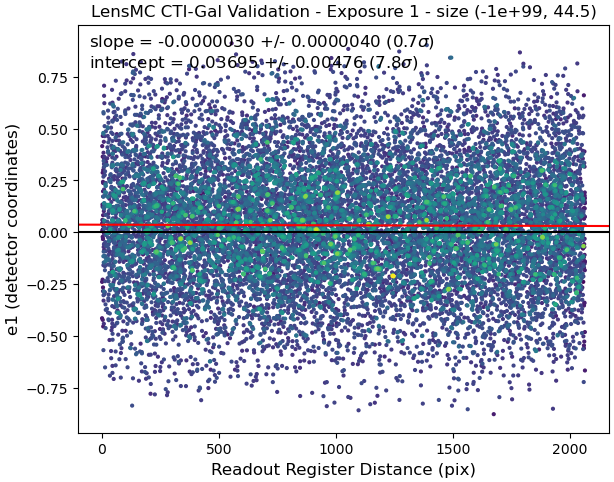

Bin 0
Bin limits: -1e+99 to 44.5.
Slope Test Result
Slope = -2.9546592941187555e-06 +/- 3.958847173635149e-06
Z(Slope) = 0.7463433742523193 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.036945998668670654 +/- 0.004759376402944326
Z(Intercept) = 7.762781620025635 (Max allowed: 5.80)
Intercept result: FAILED

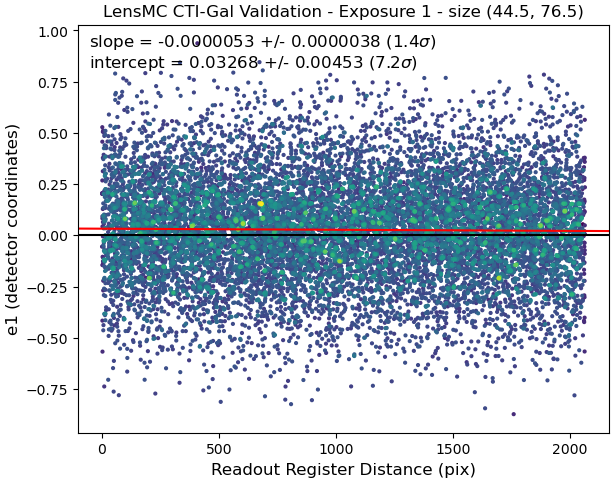

Bin 1
Bin limits: 44.5 to 76.5.
Slope Test Result
Slope = -5.336850790627068e-06 +/- 3.8089217468950665e-06
Z(Slope) = 1.4011447429656982 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.0326826237142086 +/- 0.0045293839648365974
Z(Intercept) = 7.215688705444336 (Max allowed: 5.80)
Intercept result: FAILED

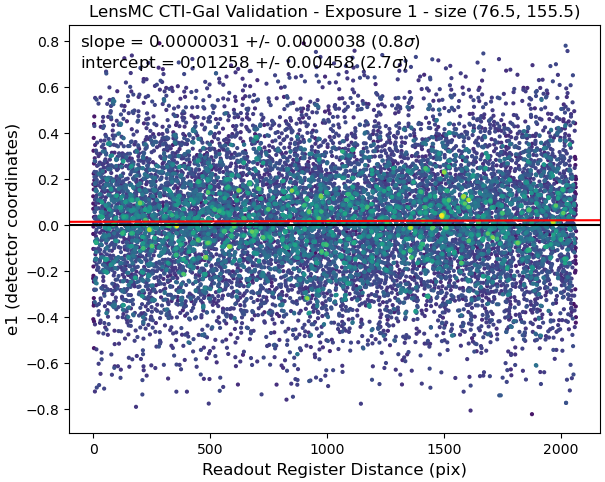

Bin 2
Bin limits: 76.5 to 155.5.
Slope Test Result
Slope = 3.104319830526947e-06 +/- 3.837305939669022e-06
Z(Slope) = 0.8089841604232788 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.012581268325448036 +/- 0.004577388986945152
Z(Intercept) = 2.7485687732696533 (Max allowed: 5.80)
Intercept result: PASSED

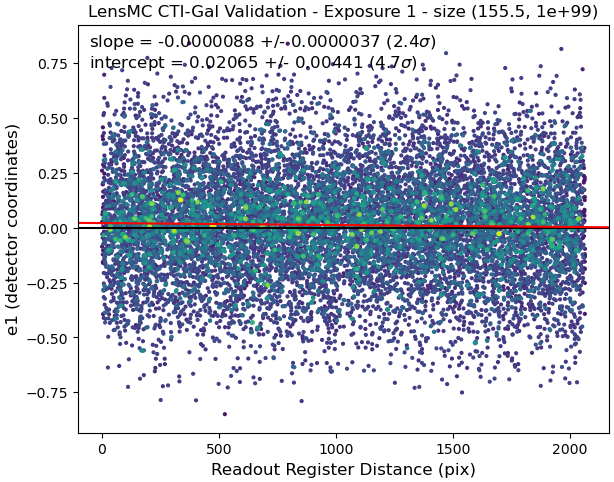

Bin 3
Bin limits: 155.5 to 1e+99.
Slope Test Result
Slope = -8.830559636407997e-06 +/- 3.7116758448973997e-06
Z(Slope) = 2.3791301250457764 (Max allowed: 5.80)
Slope result: PASSED
Intercept Test Result
Intercept = 0.020648863166570663 +/- 0.004405815154314041
Z(Intercept) = 4.686729431152344 (Max allowed: 5.80)
Intercept result: PASSED
