TC-SHE-100017-shear-bias-m-LensMC-BG

Table of Contents

1. General Information
2. Results and Figures
   1. Bin 0
      1. m1 Test Result
      2. m2 Test Result
   2. Bin 1
      1. m1 Test Result
      2. m2 Test Result
   3. Bin 2
      1. m1 Test Result
      2. m2 Test Result
   4. Bin 3
      1. m1 Test Result
      2. m2 Test Result

General Information

Test Case ID: TC-SHE-100017-shear-bias-m-LensMC

Description: Multiplicative shear bias. Binned by background level. Shear estimation method: ShearEstimationMethods.LENSMC.

Result: PASSED

Results and Figures

Bin 0

Bin limits: -1e+99 to 33.83562660217285.

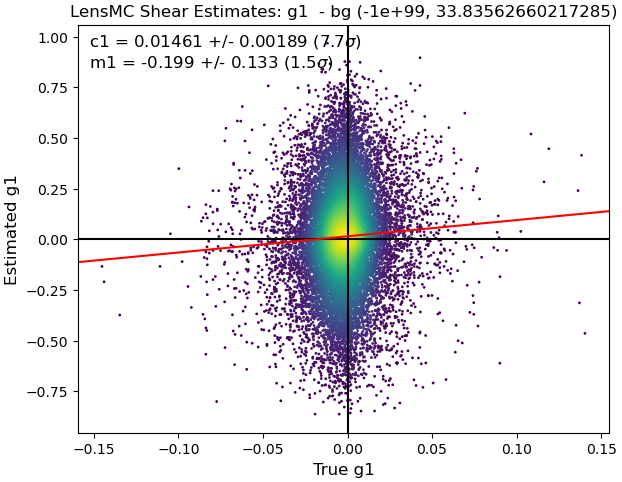

m1 Test Result

m₁ = -0.19912097 +/- 0.13326883

Z(m₁) = 1.49337970 (Max allowed: 5.91041255)

m₁ result: PASSED

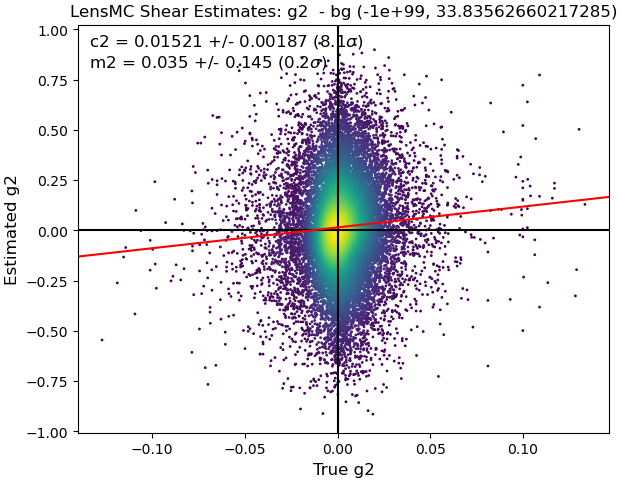

m2 Test Result

m₂ = 0.03512614 +/- 0.14474038

Z(m₂) = 0.24199287 (Max allowed: 5.91041255)

m₂ result: PASSED

Bin 1

Bin limits: 33.83562660217285 to 33.866079330444336.

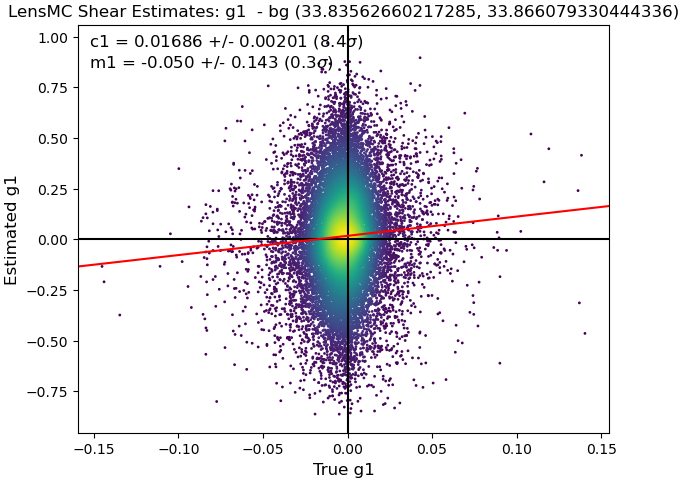

m1 Test Result

m₁ = -0.04972752 +/- 0.14295521

Z(m₁) = 0.34715435 (Max allowed: 5.91041255)

m₁ result: PASSED

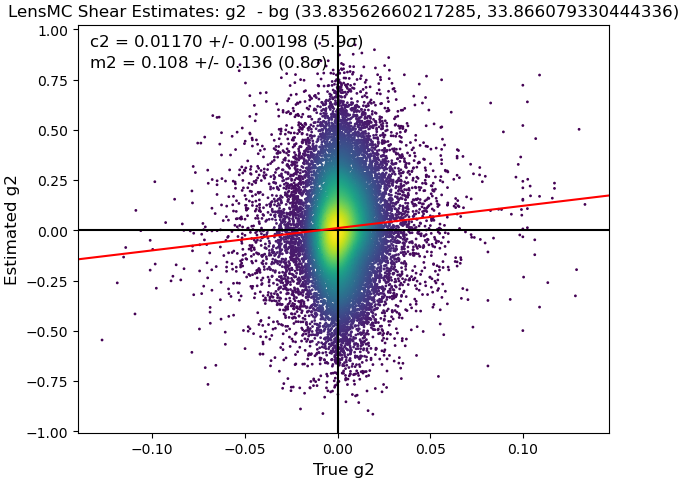

m2 Test Result

m₂ = 0.10791207 +/- 0.13633825

Z(m₂) = 0.79076905 (Max allowed: 5.91041255)

m₂ result: PASSED

Bin 2

Bin limits: 33.866079330444336 to 33.90309715270996.

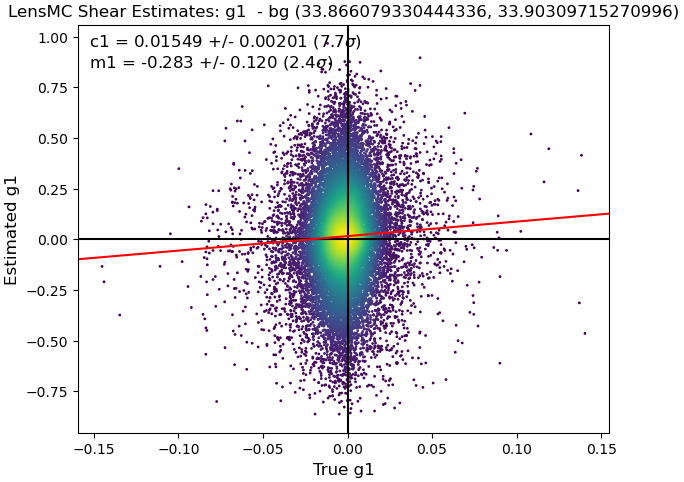

m1 Test Result

m₁ = -0.28299001 +/- 0.11967930

Z(m₁) = 2.36373391 (Max allowed: 5.91041255)

m₁ result: PASSED

m2 Test Result

m₂ = -0.01196132 +/- 0.11626942

Z(m₂) = 0.10201578 (Max allowed: 5.91041255)

m₂ result: PASSED

Bin 3

Bin limits: 33.90309715270996 to 1e+99.

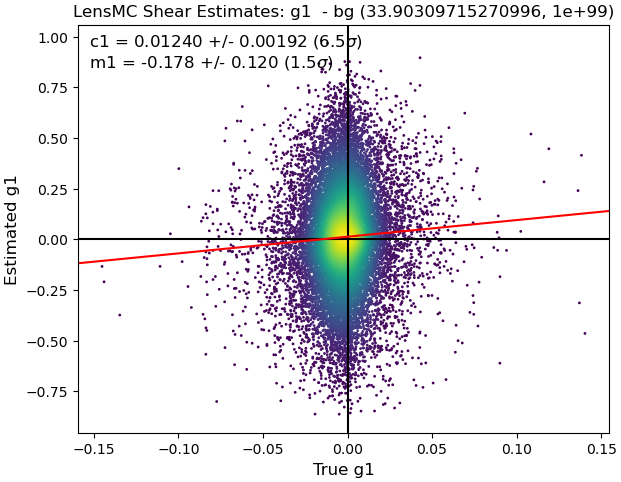

m1 Test Result

m₁ = -0.17821556 +/- 0.12022727

Z(m₁) = 1.48149047 (Max allowed: 5.91041255)

m₁ result: PASSED

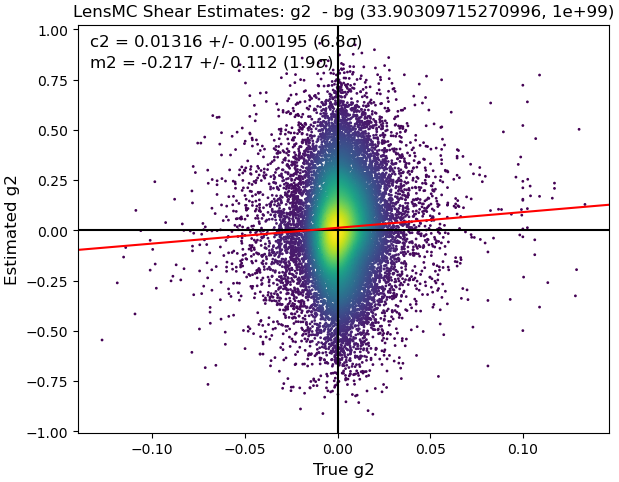

m2 Test Result

m₂ = -0.21685035 +/- 0.11156500

Z(m₂) = 1.94281677 (Max allowed: 5.91041255)

m₂ result: PASSED
